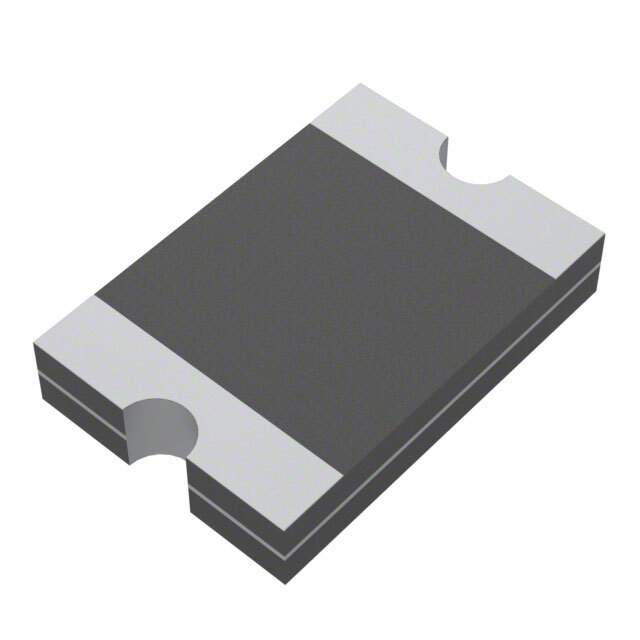

SMD1812B014TF Real Image
Same model may have multiple batches, images only for reference.

SMD1812B014TF

Part No SMD1812B014TF
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description PPTC SMD 1812, 60V 0.14A, REEL 7  /  Polymeric PTC Resettable Fuse 60V 140 mA Ih Surface Mount 1812 (4532 Metric), Concave
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr YAGEO
Series SMD1812
Package Tape & Reel
Type Polymeric
Voltage - Max 60V
Current - Max 10 A
Current - Hold (Ih) (Max) 140 mA
Current - Trip (It) 340 mA
Time to Trip 150 ms
Resistance - Initial (Ri) (Min) 1.5 Ohms
Resistance - Post Trip (R1) (Max) 6 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric), Concave
Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.077" (1.95mm)
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Names YAG6724TR,YAG6724CT,YAG6724DKR
Standard Package 1,500
Win Source Part Number 991079-SMD1812B014TF
Ultra Librarian 3D Model Ultra Librarian SMD1812B014TF CAD Model

Description

The SMD1812B014TF is a PTC resettable fuse from YAGEO. It is a polymeric type with a package of tape and reel.

  • Thickness: 0.077 inches (1.95mm)
  • Dimension: 0.179 inches L x 0.128 inches W (4.55mm x 3.24mm)
  • Voltage Rating: 60V
  • Maximum Current: 10A
  • Current Hold (Ih): 140mA
  • Current Trip (It): 340mA
  • Time to Trip: 150ms
  • Initial Resistance (Ri): 1.5 ohms
  • Post Trip Resistance (R1): 6 ohms
  • Operating Temperature: -40 degrees Celsius to 85 degrees Celsius
  • Standard Package: 1,500
  • Approvals: cUL, TUV, UL
