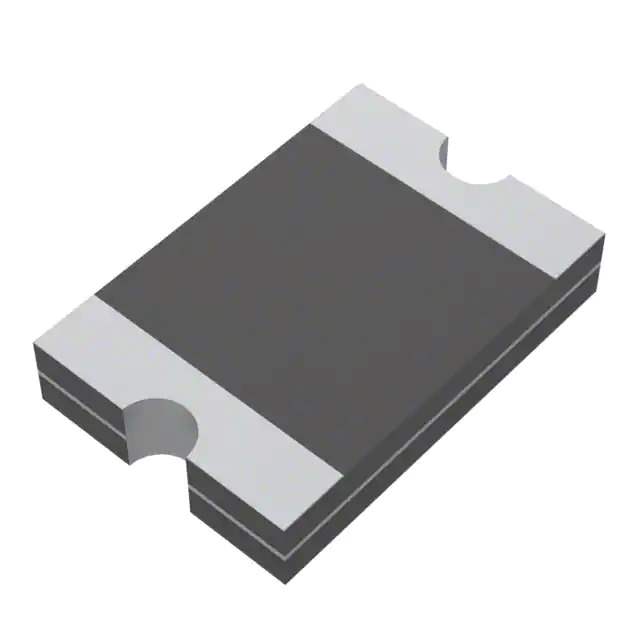

SMD1812B260TF/16 Real Image
Same model may have multiple batches, images only for reference.

SMD1812B260TF/16

Part No SMD1812B260TF/16
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description POLYMERIC PTC RESETTABLE FUSE SU
Datasheet
SMD1812B260TF/16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr YAGEO
Series SMD1812
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 16V
Current - Hold (Ih) (Max) 2.6 A
Current - Trip (It) 5 A
Current - Max 100 A
Time to Trip 5 s
Resistance - Initial (Ri) (Min) 15 mOhms
Resistance - Post Trip (R1) (Max) 50 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric), Concave
Size / Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.083" (2.10mm)
Approval Agency cUL, TUV, UL
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 934233-SMD1812B260TF/16
Ultra Librarian 3D Model Ultra Librarian SMD1812B260TF/16 CAD Model

Description

The 934233-SMD1812B260TF/16 is a polymeric PTC resettable fuse designed for circuit protection. It belongs to the SMD1812 series and comes in a tape and reel package.

  • Package: Tape and Reel
  • Size: 0.179" L x 0.128" W (4.55mm x 3.24mm)
  • Thickness: 0.083" (2.10mm)
  • Maximum Voltage Rating: 16V
  • Maximum Current Rating: 100 A
  • Hold Current: 2.6 A
  • Trip Current: 5 A
  • Time to Trip: 5 seconds
  • Mounting: Surface Mount
  • Package/Case Size: 1812 (4532 Metric), concave
  • Operating Temperature Range: -40°C to 85°C
  • Initial Resistance: 15 mOhms
  • Post-Trip Resistance: 50 mOhms
  • Standard Package: 1,000 pcs
  • Manufacturer: YAGEO
