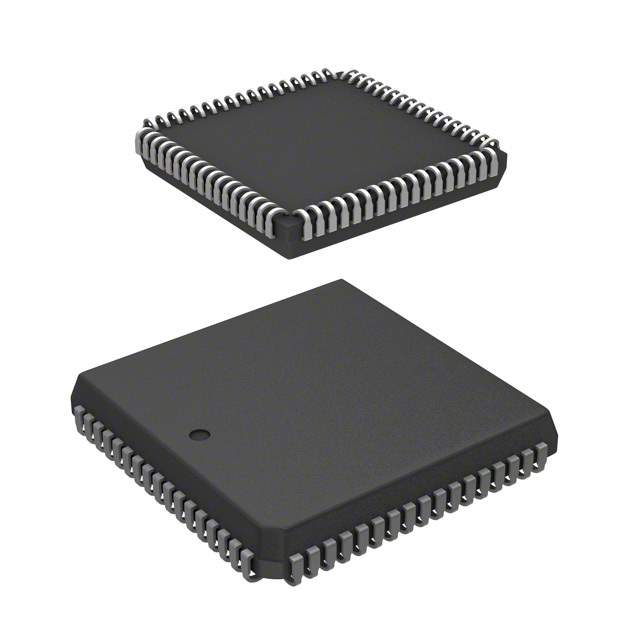

The Z16C3010VEG is a Z16C30 Universal Serial Controller (USC) manufactured by Zilog. It's a versatile communication controller designed to handle various serial communication protocols. This device provides flexible and efficient serial communication for embedded systems and other applications requiring data transfer over serial lines.

Applications

• Serial communication in embedded systems.
• Data acquisition systems.
• Industrial control applications.
• Communication between microcontrollers and peripherals.
• Point-to-point serial links.
• Networking applications using serial protocols.

Features

• Multiple serial communication channels: Supports simultaneous communication over multiple serial ports.
• Asynchronous and synchronous communication modes: Offers flexibility to support different communication protocols.
• Programmable baud rate generator: Allows for precise control over the data transfer rate.
• Built-in error detection and correction: Ensures reliable data transfer.
• DMA support: Enables high-speed data transfer without CPU intervention.
• Interrupt handling: Simplifies integration with microcontrollers.
• Versatile clocking options: Provides flexibility in clocking the device.

Benefits

• Flexible serial communication: Supports a wide range of serial protocols and baud rates.
• Efficient data transfer: DMA support reduces CPU overhead and improves system performance.
• Reliable data communication: Error detection and correction ensure data integrity.
• Simplified system integration: Interrupt handling and versatile clocking options simplify interfacing with microcontrollers.
• Reduced development time: Comprehensive feature set and flexible configuration options speed up the development process.

Additional Details

The Z16C3010VEG typically operates with a supply voltage of 5V or 3.3V, depending on the specific variant. It supports various serial communication standards, including UART, SPI, and other synchronous protocols. The device's DMA controller allows for efficient data transfer between memory and the serial ports without requiring constant CPU intervention. The interrupt controller provides a mechanism for the device to signal events to the microcontroller. The operating temperature range is typically from -40°C to +85°C. The device is often available in surface-mount packages, facilitating easy integration into modern electronic designs. Consult the datasheet for specific parameters such as baud rate limits, data format options, and interrupt configurations.
