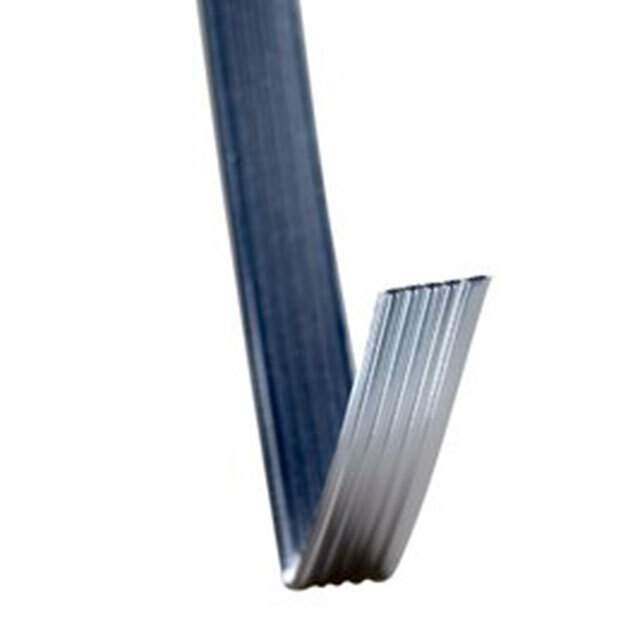

SL8801/12-21DA5-00 Real Image
Same model may have multiple batches, images only for reference.

SL8801/12-21DA5-00

Part No SL8801/12-21DA5-00
Manufacturer 3M
Catalog Flat Ribbon Cables
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires>Flat Ribbon Cables
Mfr 3M
Series SL8800
Package Spool
Cable Type Flat Twin Axial
Number of Conductors 8 (4 Pair)
Pitch 0.093" (2.37mm) Between Pairs
Length 500.0' (152.40m)
Wire Gauge 30 AWG
Conductor Strand Solid
Shielding Shielded
Jacket Color Silver
Ribbon Thickness 0.035" (0.89mm)
Ribbon Width 0.539" (13.70mm)
Jacket (Insulation) Material Polyolefin (PO)
Voltage 150 V
Ratings UL E42769
Conductor Material Copper, Tinned
Insulation Resistance 1000MOhms
Base Product Number SL8801
Other Names 00051115594427,05111559442,5111559442,51115594427,70010029281,7100001551
Standard Package 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Win Source Part Number 1308482-SL8801/12-21DA5-00
Ultra Librarian 3D Model Ultra Librarian SL8801/12-21DA5-00 CAD Model

Description

The 3M 1308482-SL8801/12-21DA5-00 is a flat twin axial cable that has a pitch of 0.093 inches between pairs.

  • Pitch: 0.093 inches between pairs
  • Conductors: Eight conductors with four pairs
  • Wire Gauge: 30 AWG
  • Shielded: Yes
  • Voltage Rating: 150 V
  • Insulation Resistance: 1000MOhms
  • Ribbon Thickness: 0.035 inches
  • Rating: UL E42769
