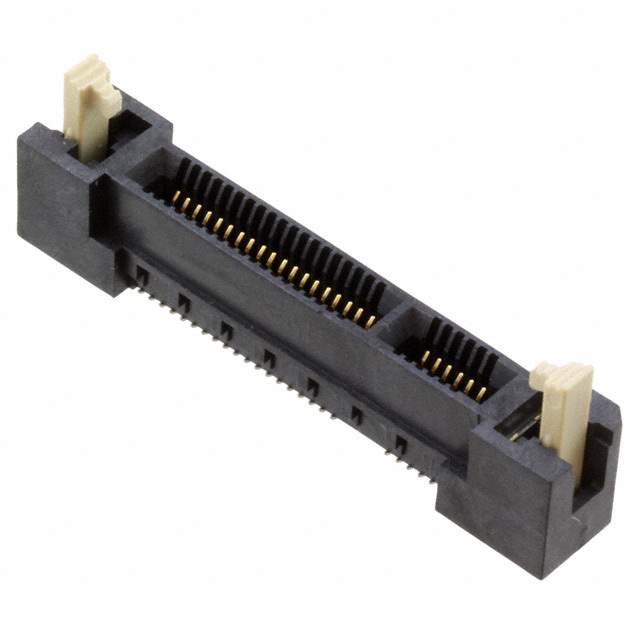

SPD08-050-L-RB-TR Real Image
Same model may have multiple batches, images only for reference.

SPD08-050-L-RB-TR

Part No SPD08-050-L-RB-TR
Manufacturer 3M
Catalog Card Edge Connectors - Edgeboard Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr 3M
Series SPD08
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 50
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide, Latches
Mounting SMD (SMT)
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP), Glass Filled
Base Product Number SPD08
Other Names XF003869997,SPD08050LRBTR,3M12036CT,7010416373,XF003825643,3M12036TR,3M12036DKR,00076308602482
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
Win Source Part Number 1294258-SPD08-050-L-RB-TR
Ultra Librarian 3D Model Ultra Librarian SPD08-050-L-RB-TR CAD Model

Description

The 3M SPD08-050-L-RB-TR is a female card edge connector from the SPD08 series.

  • Positions: 50
  • Pitch: 0.031" (0.80mm)
  • Color: Black
  • Features: Board guide and latches
  • Contact Type: Cantilever
  • Rows: 2
  • Termination: Solder
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Contact Material: Copper Alloy
  • Insulation Material: Liquid Crystal Polymer (LCP), glass filled
  • Gender: Female
  • Standard Package: 250 units
  • Mounting Type: SMD (SMT)
  • Card Type: Non-specified dual edge
  • Card Thickness: 0.062" (1.57mm)
  • Feature: Dual read out
  • Temperature Range for Operating: -55°C to 125°C
  • ECCN: EAR99
  • MSL Level: 1
  • REACH Status: Unaffected
  • Manufacturer: 3M
