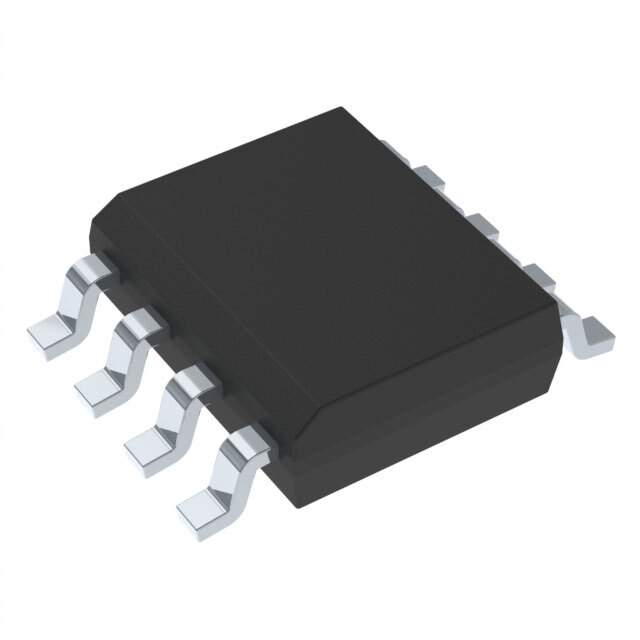

TSM4424CS RLG Real Image
Same model may have multiple batches, images only for reference.

TSM4424CS RLG

Part No TSM4424CS RLG
Manufacturer Taiwan Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET, SINGLE, N-CHANNEL, TRENC
Datasheet
TSM4424CS RLG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Taiwan Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 11.2nC @ 4.5V
Max Input Capacitance 500pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 2.5W (Ta)
Maximum Rds On at Id,Vgs 30 mOhm @ 4.5A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-SOP
Dimension 8-SOIC (0.154", 3.90mm Width)
Win Source Part Number 1114742-TSM4424CS RLG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSM4424CS RLG CAD Model

Description

The TSM4424CS RLG is an N-channel MOSFET manufactured by Taiwan Semiconductor.

  • Power Dissipation: 2.5W (Ta)
  • Maximum Drain-Source Breakdown Voltage: 20V
  • Maximum Rds On @ Id, Vgs: 30 mOhm @ 4.5A, 4.5V
  • Versatile component: can be used in a wide range of applications
  • Supply and demand status: balanced
