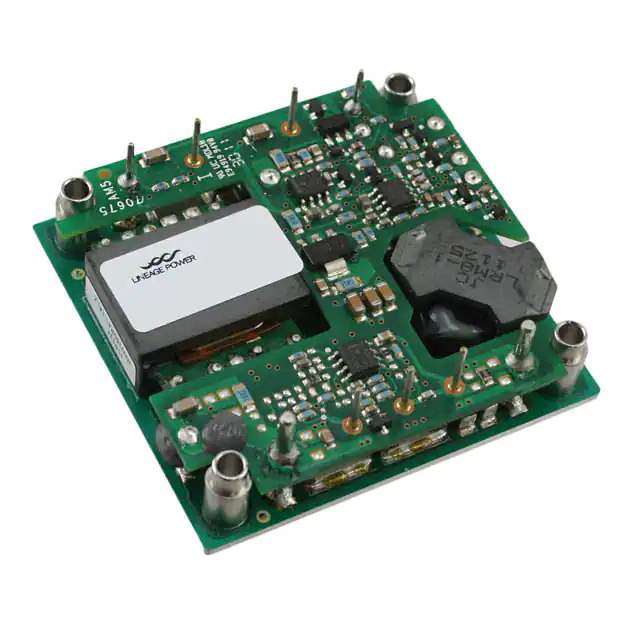

Same model may have multiple batches, images only for reference.

JNW350R641Z

Name: JNW350R641Z
Brand: ABB Embedded Power
SKU: 876228
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	JNW350R641Z
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 28V 350W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Embedded Power
Series	JNW350R (350W)
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	28V
Current - Output (Max)	12.5A
Power (Watts)	350 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	92%
Mounting Type	Through Hole
Package / Case	9-DIP Module, 1/2 Brick
Size / Dimension	2.39" L x 2.27" W x 0.50" H (60.7mm x 57.7mm x 12.7mm)
Control Features	Enable, Active Low
Standard Package	40 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	876228-JNW350R641Z
Ultra Librarian 3D Model	Ultra Librarian JNW350R641Z CAD Model

Alternative Products

Description

The JNW350R (350W) series offers a high-power solution for board mount applications.

Part Number: 876228-JNW350R641Z
Type: Isolated Module
Maximum Output Current: 12.5A
Input Voltage: 36V to 75V
Output Voltage: 28V (Fixed)
Features: Remote On/Off, OCP, OTP, OVP, UVLO
Size: 2.39" L x 2.27" W x 0.50" H
Application: ITE (Commercial)
Mounting Type: Through Hole
Package: Bulk
Operating Temperature: -40°C to 85°C
Efficiency: 92%
Manufacturer: ABB Embedded Power
Status: Obsolete
Standard Package: 40 pcs
