Same model may have multiple batches, images only for reference.

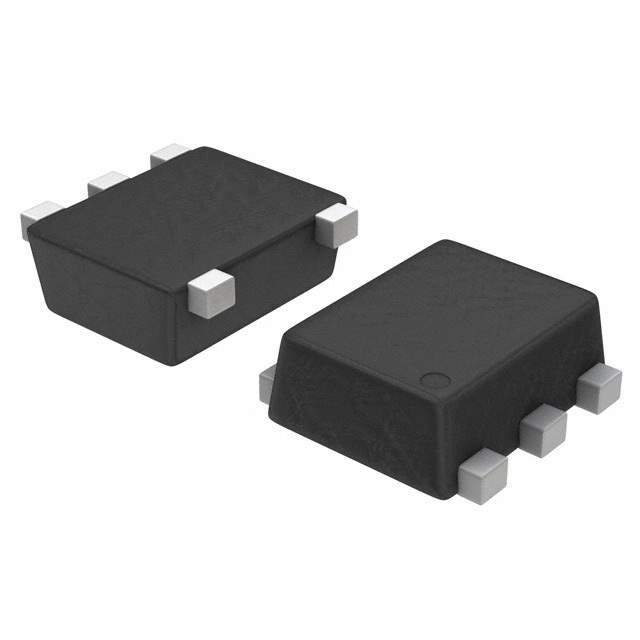

S-L2980A49PN-TF-G Real Image
Same model may have multiple batches, images only for reference.

S-L2980A49PN-TF-G

Part No S-L2980A49PN-TF-G
Manufacturer ABLIC U.S.A. Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 4.9V 150MA 5SON  /  Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 5-SON (2x1.7)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr ABLIC Inc.
Series S-L2980
Package Tape & Reel (TR)
Product Status Obsolete
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 10V
Voltage - Output (Min/Fixed) 4.9V
Voltage Dropout (Max) 0.14V @ 50mA
Current - Output 150mA
Current - Quiescent (Iq) 1 µA
Current - Supply (Max) 140 µA
PSRR 65dB (1kHz)
Control Features Enable
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 5-SMD, Flat Leads
Supplier Device Package 5-SON (2x1.7)
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1245089-S-L2980A49PN-TF-G
Ultra Librarian 3D Model Ultra Librarian S-L2980A49PN-TF-G CAD Model

Description

The S-L2980A49PN-TF-G is a linear voltage regulator from the S-L2980 series of integrated circuits (ICs).

  • Output Type: Fixed
  • Maximum Input Voltage: 10V
  • Package: 5-SMD, flat leads
  • Supplier Device Package: 5-SON (2x1.7)
  • Win Source Part Number: 1245089
