Same model may have multiple batches, images only for reference.

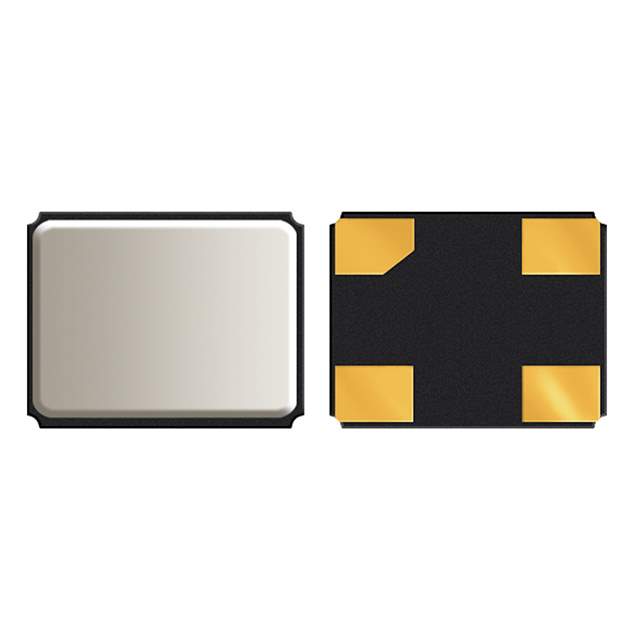

ABM10-18.432MHZ-E20-T Real Image
Same model may have multiple batches, images only for reference.

ABM10-18.432MHZ-E20-T

Part No ABM10-18.432MHZ-E20-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 18.4320MHZ 10PF SMD / 18.432 MHz ±20ppm Crystal 10pF 150 Ohms 4-SMD, No Lead
Datasheet
ABM10-18.432MHZ-E20-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer Abracon LLC
Packaging Reel - TR
Type MHz Crystal
Frequency 18.432 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 150 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.028" (0.70mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Part Number 535-9813-2,535-9813-1,535-9813-6,ABM1018432MHZE20T
Standard Package 1,000
Win Source Part Number 1328383-ABM10-18.432MHZ-E20-T
Ultra Librarian 3D Model Ultra Librarian ABM10-18.432MHZ-E20-T CAD Model

Description

The 1328383-ABM10-18.432MHZ-E20-T from Abracon LLC is a surface mount MHz crystal with a frequency of 18.432 MHz.

  • ESR: 150 Ohms
  • Frequency Stability: ±20ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 10pF
  • Operating Mode: Fundamental
  • Temperature Range: -20°C to 70°C
  • Package: 4-SMD, No Lead
  • Standard Package: 1,000
  • ROHS3 Compliant: Yes
  • REACH Status: Unaffected
