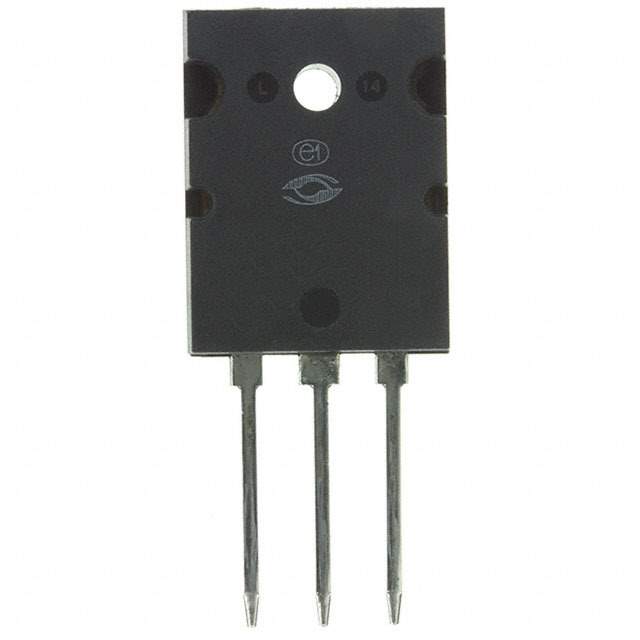

The APT20M22LVR is an RF MOSFET manufactured by Advanced Power Technology (APT). It's designed for high-frequency applications, offering a combination of low on-resistance and gate charge to maximize efficiency. This makes it suitable for use in RF power amplifiers and high-speed switching applications.

Applications

• RF Power Amplifiers
• High-Frequency Inverters
• Switch Mode Power Supplies (SMPS)
• Wireless Base Stations
• Radar Systems

Features

• Low Gate Charge (Qg)
• Fast Switching Speed
• Low RDS(on) (On-Resistance)
• High Input Impedance
• RoHS Compliant

Benefits

• Increased Efficiency: The low gate charge and on-resistance minimize switching and conduction losses, resulting in higher overall efficiency in power amplifier designs.
• Improved Performance at High Frequencies: Fast switching speed allows for optimal performance in high-frequency applications, reducing distortion and improving signal quality.
• Reduced Heat Dissipation: Lower on-resistance translates to less power dissipation as heat, simplifying thermal management and improving system reliability.
• Simplified Circuit Design: High input impedance reduces the drive requirements, simplifying the design of the gate drive circuitry.
• Environmentally Compliant: RoHS compliance ensures the device meets environmental regulations and is suitable for use in environmentally sensitive applications.

Additional Details
