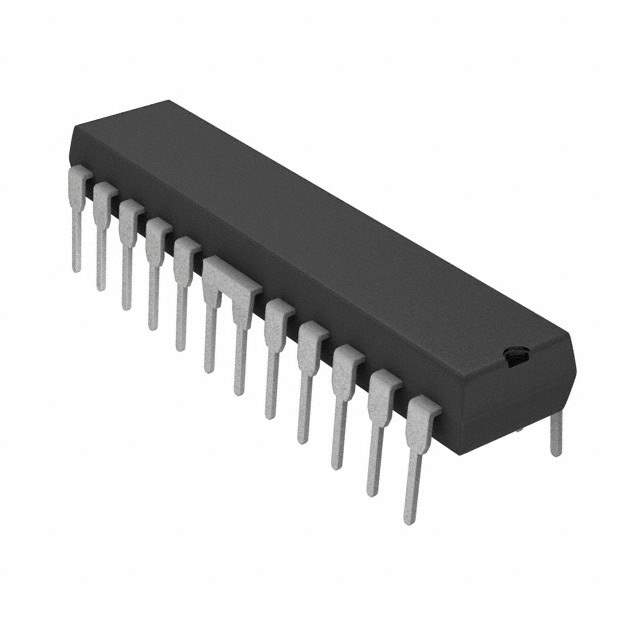

A3959SB Real Image
Same model may have multiple batches, images only for reference.

A3959SB

Part No A3959SB
Manufacturer Allegro MicroSystems, LLC
Catalog PMIC - Motor Drivers, Controllers
Description DMOS FULL-BRIDGE PWM MOTOR DRIVER | IC MOTOR DRIVER 4.5V-5.5V 24DIP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Allegro MicroSystems, LLC
Packaging Tube
Status Obsolete
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface Parallel
Technology DMOS
Applications General Purpose
Output Current 3A
Supply Voltage (V) 4.5V ~ 5.5V
Load Voltage (V) 9.5V ~ 50V
Temperature Range - Operating -20°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 24-PowerDIP
Supplier Device Package 24-DIP
Family Part Number A3959
Manufacturer Pack Quantity 15
MSL Level 1 (Unlimited)
Win Source Part Number 1134596-A3959SB
Manufacturer Homepage www.allegromicro.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian A3959SB CAD Model

Description

The A3959SB is a fully integrated, high-performance motor driver IC designed for use in a wide range of applications.

  • Output Configuration: Half-bridge
  • Maximum Output Current: 3A
  • Suitable For: Brushed DC motors
