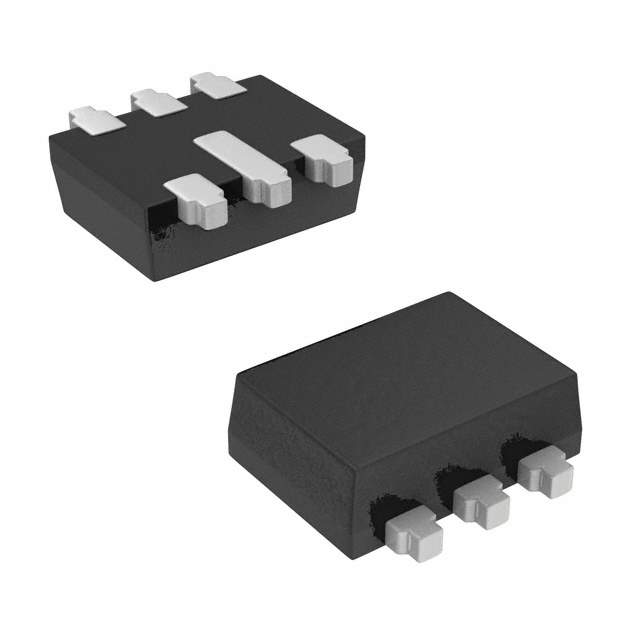

AO5804E Real Image
Same model may have multiple batches, images only for reference.

AO5804E

Part No AO5804E
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 20V 0.5A SC89-6L
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
FET Type 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 500mA
Maximum Rds On at Id,Vgs 550 mOhm @ 500mA, 4.5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 1nC @ 4.5V
Max Input Capacitance 45pF @ 10V
Maximum Power Dissipation 280mW
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SC-89-6
Win Source Part Number 009770-AO5804E
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AO5804E CAD Model

Description

AO5804E - Advanced MOSFET for Efficient Power Regulation

Designed with efficiency and reliability in mind, the AO5804E MOSFET offers superior power handling capabilities for contemporary electronics. Its low on-resistance and fast-switching attributes ensure it meets the rigorous demands of modern applications.

  • Applications:
    • Smart Grid Technologies
    • Telecommunication Equipment
    • Embedded Systems
  • Features and Benefits:
    • Superior Power Handling: Aligns with the needs of complex systems.
    • Fast Transition Times: Enhances performance in system-critical applications.
    • High Reliability: Ensures system stability and durability.
  • Additional Details:

    The AO5804E is optimized to deliver efficient power conversion and regulation, making it essential for next-gen electronic solutions.
