Same model may have multiple batches, images only for reference.

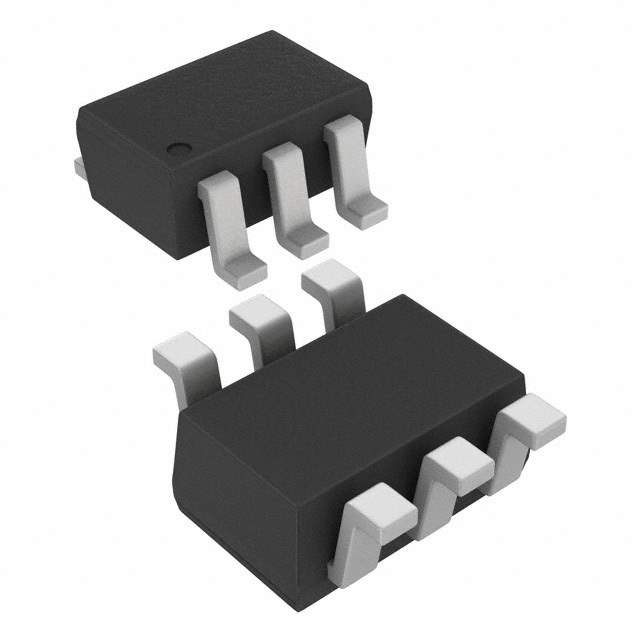

AO7801 Real Image
Same model may have multiple batches, images only for reference.

AO7801

Part No AO7801
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2P-CH 20V SC70-6
Datasheet
AO7801 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
FET Type 2 P-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 20V
Maximum Rds On at Id,Vgs 520 mOhm @ 600mA, 4.5V
Gate-Source Threshold Voltage 900mV @ 250μA
Max Gate Charge 1.8nC @ 4.5V
Max Input Capacitance 140pF @ 10V
Maximum Power Dissipation 300mW
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SC-70-6
Win Source Part Number 078116-AO7801
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AO7801 CAD Model

Description

Product Description for AO7801

The AO7801 is a high-performance P-channel MOSFET designed to deliver efficient switching capabilities in power management circuits. This MOSFET excels in minimizing conduction losses.

  • Application: Ideal for use in battery-powered devices, load switches, and motor controllers.
  • Features: High threshold voltage, low gate charge, and excellent switching speed.
  • Benefits: Enhanced power efficiency, reduced power consumption, and swift response time.

An optimal choice for projects that prioritize efficient power use and fast switching operations.
