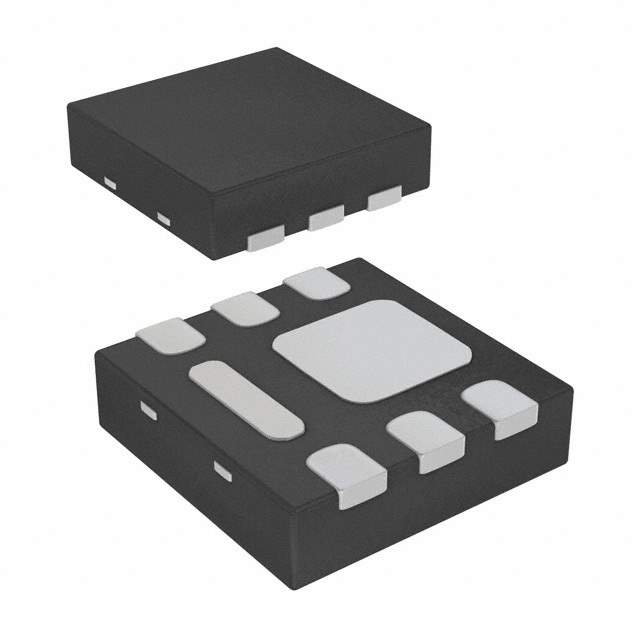

AON2240 Real Image
Same model may have multiple batches, images only for reference.

AON2240

Part No AON2240
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 8A 6DFN / Trans MOSFET N-CH 40V 8A 6-Pin DFN-B EP T/R
Datasheet
AON2240 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 8A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.4V @ 250μA
Max Gate Charge 12nC @ 10V
Max Input Capacitance 415pF @ 20V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.8W (Ta)
Maximum Rds On at Id,Vgs 21 mOhm @ 8A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-DFN-EP (2x2)
Dimension 6-UDFN Exposed Pad
Win Source Part Number 1016998-AON2240
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name AON2240
Introduction Date December 29, 2011
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian AON2240 CAD Model

Description

The AON2240 is an N-channel MOSFET featuring a drain-source breakdown voltage of 40V by .

  • Drain-Source Breakdown Voltage: 40V
  • Maximum Continuous Drain Current (25°C): 8A (Ta)
  • Maximum Rds On: 21mOhm @ 8A, 10V
  • Gate Charge: 12nC @ 10V
  • Input Capacitance: 415pF @ 20V
  • Gate-Source Threshold Voltage: 2.4V @ 250μA
  • Mounting: SMD
  • Package: 6-DFN-EP (2x2)
  • Power Dissipation: 2.8W (Ta)
  • Operating Temperature: -55°C to 150°C (TJ)
