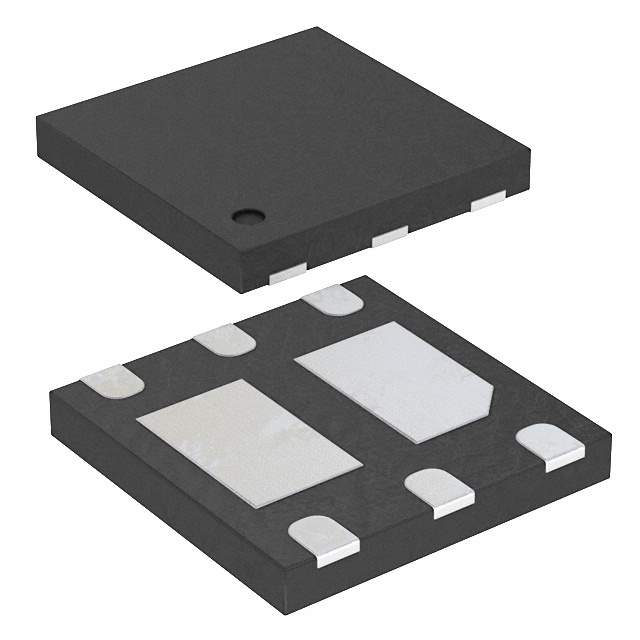

AON2809 Real Image
Same model may have multiple batches, images only for reference.

AON2809

Part No AON2809
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2P-CH 12V 2A 6DFN / Trans MOSFET P-CH 12V 2A 6-Pin DFN-A EP T/R
Datasheet
AON2809 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel package
Part Status Obsolete(EOL)
FET Type 2 P-Channel (Dual)
FET Feature Logic Level Gate
Drain Source Voltage 12V
Current - Continuous Drain (Id) @ 25°C 2A
Rds On (Maximum) @ Id, Vgs 68 mOhm @ 2A, 4.5V
Vgs(th) (Maximum) @ Id 900mV @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 4.4nC @ 4.5V
Input Capacitance (Ciss) (Maximum) @ Vds 415pF @ 6V
Power - Max 2.1W
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package 6-WDFN Exposed Pad
Manufacturer Package 6-DFN-EP (2x2)
Win Source Part Number 768558-AON2809
Popularity Medium
Supply and Demand Status Limited
Family Name AON2809
Introduction Date December 02, 2012
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AON2809 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AON2809 is a 6-WDFN Exposed Pad package, surface mount, dual P-channel MOSFET IC. It has an operating temperature range with the following specifications:

  • Temperature Range: -55°C to 150°C (TJ)
  • Status: Obsolete (EOL)
  • Supply and Demand: Limited
  • Drain Source Voltage: 12V
  • Gate Charge (Qg) (maximum) @ Vgs: 4.4nC @ 4.5V
  • Other Part Numbers: SiA975DJ, SiA975DJ-T1-GE3, TSM500P02DCQ RFG
