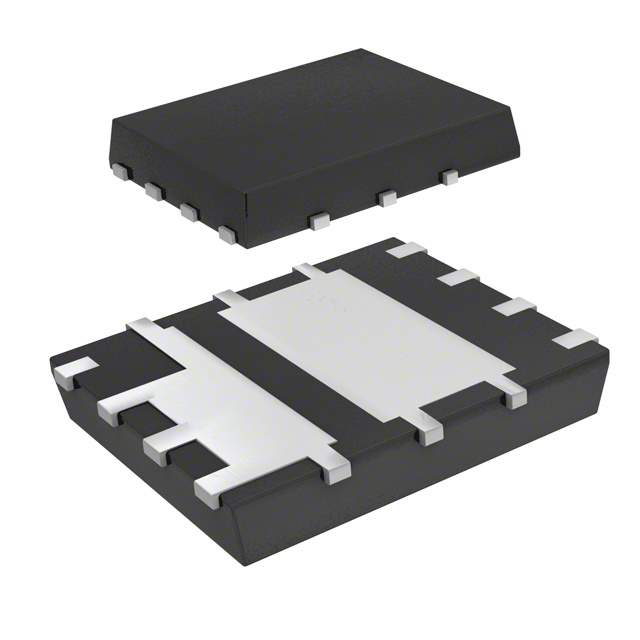

AON6970 Real Image
Same model may have multiple batches, images only for reference.

AON6970

Part No AON6970
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 30V 24A/42A 8DFN
Datasheet
AON6970 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
FET Type 2 N-Channel (Half Bridge)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 24A, 42A
Maximum Rds On at Id,Vgs 5.4 mOhm @ 20A, 10V
Gate-Source Threshold Voltage 2.3V @ 250μA
Max Gate Charge 23nC @ 10V
Max Input Capacitance 1171pF @ 15V
Maximum Power Dissipation 5W, 4.1W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-DFN-EP (5x6)
Win Source Part Number 199099-AON6970
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AON6970 CAD Model

Description

AON6970: Efficient Power Management MOSFET

Specially optimized for high-frequency applications, the AON6970 MOSFET is designed for superior efficiency. This component is essential for ensuring stable power delivery in a range of applications.

  • Power Supply Modules
  • Motor Control Systems
  • Wearable Electronics
  • Portable Consumer Devices

Features and Benefits

  • Low Gate Charge for reduced power losses
  • Enhanced Body Diode for better performance
  • Reduced EMI Emissions for improved safety
  • Fast Thermal Recovery to maintain system stability
