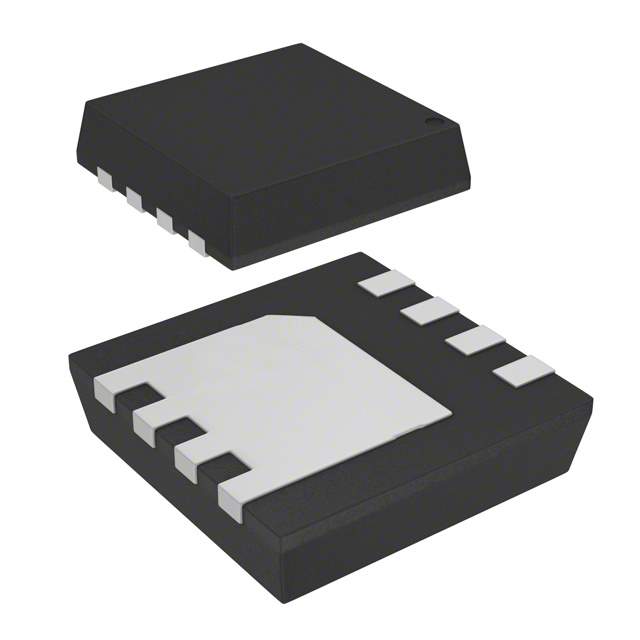

AON7244

Name: AON7244
Brand: Alpha & Omega Semiconductor Inc.
SKU: 562299
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	AON7244
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	60V N-Channel MOSFET
Datasheet	AON7244 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Alpha & Omega Semiconductor Inc.
Packaging	Reel - TR
Part Status	Obsolete(EOL)
Channel Type Type	N
Technology	MOSFET
Drain Source Voltage	60V
Current - Continuous Drain (Id) @ 25°C	20A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Vgs(th) (Maximum) @ Id	2.5V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs	32nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds	2435pF @ 30V
Vgs (Maximum)	±20V
Power Dissipation (Maximum)	6.2W (Ta), 83W (Tc)
Rds On (Maximum) @ Id, Vgs	8.5 mOhm @ 20A, 10V
Operating Temperature Range	-55°C ~ 150°C (TJ)
Mounting	SMD
Manufacturer Package	8-DFN-EP (3.3x3.3)
Package	8-PowerWDFN
Win Source Part Number	1144987-AON7244
Manufacturer Homepage	www.aosmd.com
Popularity	Medium
Supply and Demand Status	Balance
Family Name	AON7244
Introduction Date	August 18, 2011
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	Obsolete
Ultra Librarian 3D Model	Ultra Librarian AON7244 CAD Model

Alternative Products

Description

The Alpha & Omega Semiconductor Inc. AON7244 is an obsolete (EOL) MOSFET that comes in a reel-tr package. AON7244 is manufactured by Alpha & Omega Semiconductor Inc.

Status: Obsolete (EOL)
Package: Reel-tr
Operating Temperature: -55°C to 150°C
Power Dissipation: 6.2W (Ta), 83W (Tc)
Current Rating: 20A (Ta), 50A (Tc)
Resistance: 8.5 mOhm @ 20A, 10V
