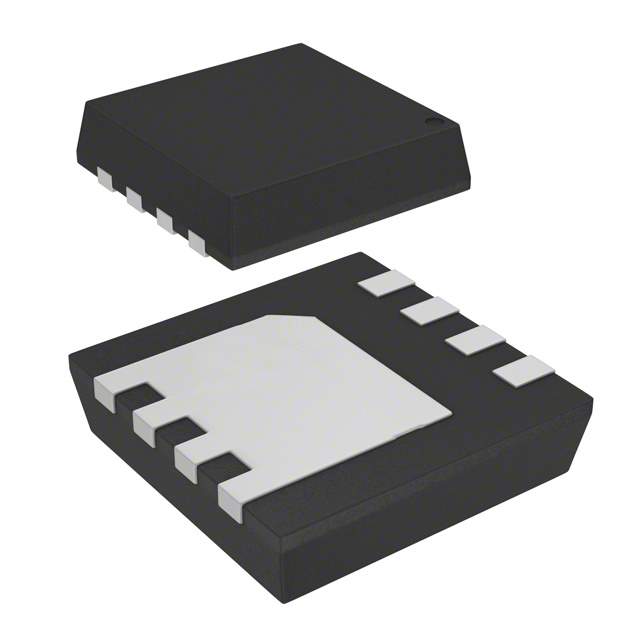

AON7421

Name: AON7421
Brand: Alpha & Omega Semiconductor Inc.
SKU: 431701
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AON7421
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET P-CH 20V 30A 8DFN
Datasheet	AON7421 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Alpha & Omega Semiconductor Inc.
Packaging	Reel - TR
Status	Active
Polarity	P-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	20V
Continuous Drain Current at 25°C	30A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Gate-Source Threshold Voltage	1.2V @ 250μA
Max Gate Charge	114nC @ 10V
Max Input Capacitance	4550pF @ 10V
Maximum Gate-Source Voltage	±12V
Power Dissipation (Max)	6.2W (Ta), 83W (Tc)
Maximum Rds On at Id,Vgs	4.6 mOhm @ 20A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	8-DFN-EP (3.3x3.3)
Dimension	8-PowerWDFN
Win Source Part Number	1017130-AON7421
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian AON7421 CAD Model

Alternative Products

Description

The Alpha & Omega Semiconductor Inc. AON7421 is a P-channel MOSFET with a maximum power dissipation of 6.2W (Ta) and 83W (Tc).

Category: Discrete Semiconductor Product
Mounting Type: SMD
Drive Voltage: 2.5V (Max Rds On), 10V (Min Rds On)
Maximum Rds On: 4.6 mOhm @ 20A, 10V
Continuous Drain Current @ 25°C: 30A (Ta), 50A (Tc)
Maximum Gate-Source Voltage: +/- 12V
Package: 8-DFN-EP (3.3x3.3)
Status: Active
Popularity: Medium
Supply and Demand Status: Balanced
