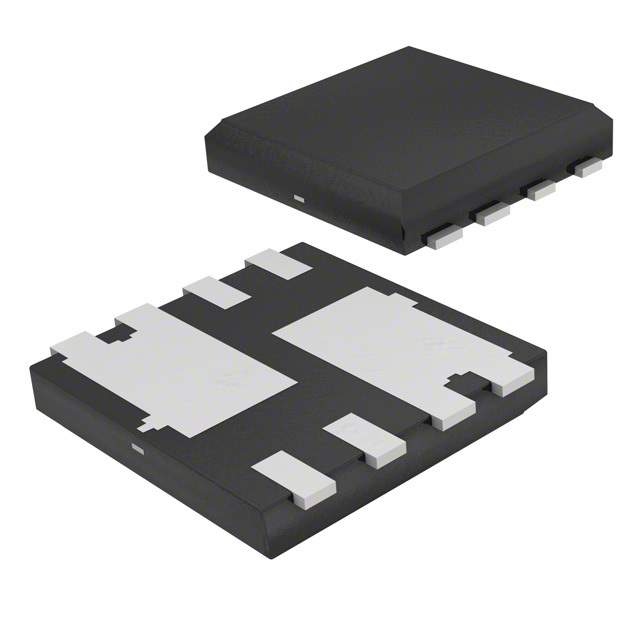

AON7804 Real Image AON7804 Real Image1 AON7804 Real Image2
Same model may have multiple batches, images only for reference.
AON7804 Real Image AON7804 Real Image1 AON7804 Real Image2
AON7804 Real Image AON7804 Real Image1 AON7804 Real Image2
Same model may have multiple batches, images only for reference.

AON7804

Part No AON7804
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 30V 9A 8DFN
Datasheet
AON7804 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
FET Type 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 9A
Maximum Rds On at Id,Vgs 21 mOhm @ 8A, 10V
Gate-Source Threshold Voltage 2.4V @ 250μA
Max Gate Charge 18nC @ 10V
Max Input Capacitance 888pF @ 15V
Maximum Power Dissipation 3.1W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-DFN (3x3)
Win Source Part Number 1017156-AON7804
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AON7804 CAD Model

Description

The AON7804 is an electronic component that is designed to be used in various electronic applications.

  • Manufacturer: Alpha & Omega Semiconductor Inc.
  • FET Configuration: 2 N-Channel (Dual)
  • Gate Type: Logic level gate
  • Supply and Demand Status: Balanced
  • Package: 8-DFN (3x3)
  • Power Dissipation: 3.1W
  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current @ 25°C: 9A
  • Gate-Source Threshold Voltage: 2.4V @ 250μA
  • Maximum Gate Charge: 18nC @ 10V
  • Maximum Input Capacitance: 888pF @ 15V
  • Maximum Rds On @ Id,Vgs: 21 mOhm @ 8A, 10V
