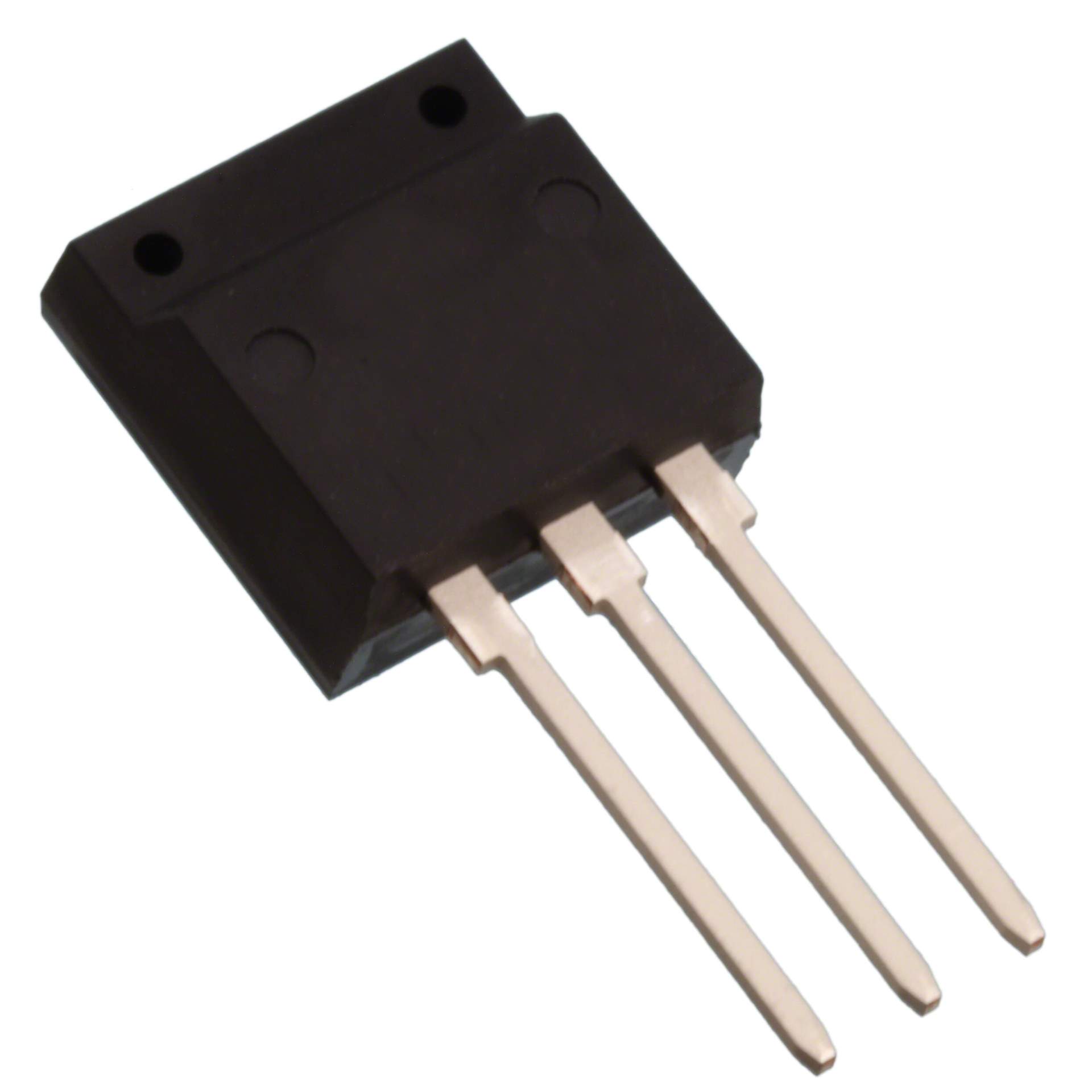

AOWF190A60C Real Image
Same model may have multiple batches, images only for reference.

AOWF190A60C

Part No AOWF190A60C
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 600V 20A TO262F / N-Channel 600 V 20A (Tj) 27W (Tc) Through Hole TO-262F
Datasheet
AOWF190A60C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Alpha & Omega Semiconductor Inc.
Series aMOS5™
Package Tube
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 20A (Tj)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 190mOhm @ 7.6A, 10V
Vgs(th) (Max) @ Id 4.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 34 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1935 pF @ 100 V
Power Dissipation (Max) 27W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Supplier Device Package TO-262F
Package / Case TO-262-3 Long Leads, I²Pak, TO-262AA
Base Product Number AOWF190
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Names 785-AOWF190A60C
Standard Package 1,000
Win Source Part Number 992042-AOWF190A60C
Ultra Librarian 3D Model Ultra Librarian AOWF190A60C CAD Model

Description

The Alpha & Omega Semiconductor AOWF190A60C is a MOSFET (Metal Oxide) transistor with N-channel FET type.

  • Drain to Source Voltage (Vdss): 600 V
  • Continuous Drain Current (Id): 20A (Tj) @ 25°C
  • Rds On (Max): 190mOhm @ 7.6A, 10V
  • Package: TO-262-3 Long Leads, I²Pak, TO-262AA
  • Mounting Type: Through-Hole
