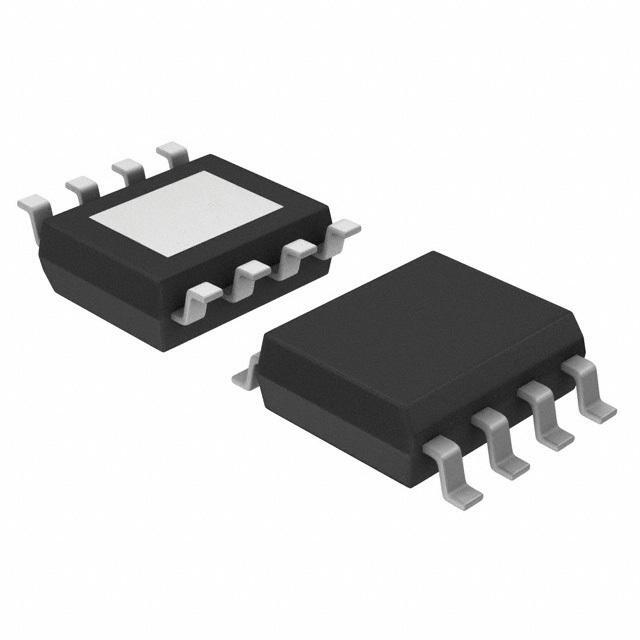

AOZ2023PI Alpha & Omega Semiconductor Inc. AOZ2023PI Real Image
Same model may have multiple batches, images only for reference.
AOZ2023PI Alpha & Omega Semiconductor Inc. AOZ2023PI Real Image
AOZ2023PI Alpha & Omega Semiconductor Inc. AOZ2023PI Real Image
Same model may have multiple batches, images only for reference.

AOZ2023PI

Part No AOZ2023PI
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog PMIC - Voltage Regulators - Linear
Description LDO Regulator 3A 8-Pin SO EP T/R / IC REG LDO ADJ 3A 8SOIC
Datasheet
AOZ2023PI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 1V
Maximum Output Voltage 5.25V
Dropout Voltage-Max 0.25V @ 2A
Output Current 3A
Operating Supply Current 1mA
Control Features Enable, Power Good
Protection Features Over Current, Over Temperature, Power On Reset (POR), Soft Start
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 8-SO Exposed Pad
Win Source Part Number 1017381-AOZ2023PI
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name AOZ2023PI
Introduction Date August 20, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian AOZ2023PI CAD Model

Description

The AOZ2023PI is an adjustable voltage regulator manufactured by Alpha & Omega Semiconductor Inc.

  • Category: Integrated Circuits
  • Regulators: Yes, multiple regulators
  • Application: High-Speed Data Transfer
  • Maximum Input Voltage: 5.5V
  • Nominal Output Voltage: 1V
  • Dropout Voltage-Max: 0.25V @ 2A
  • Output Current: 3A
  • Enable Control: Yes
  • Power Good: Yes
  • Supply and Demand Status: Balanced
