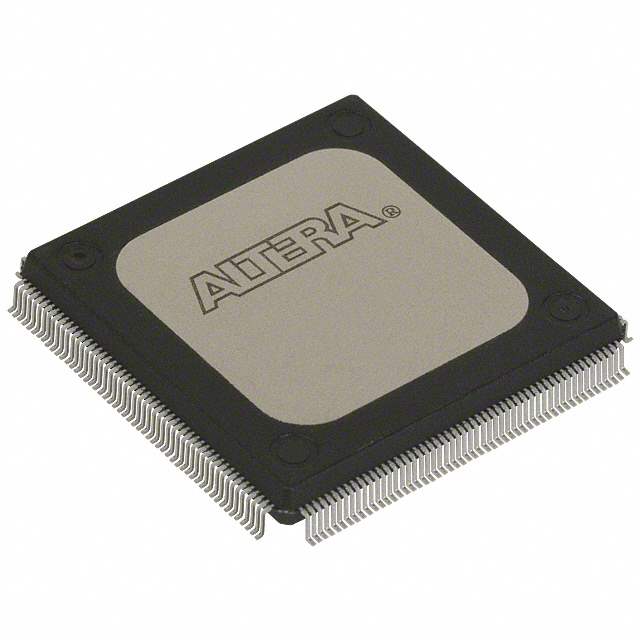

EPM9560RC208-20 Real Image
Same model may have multiple batches, images only for reference.

EPM9560RC208-20

Part No EPM9560RC208-20
Manufacturer Altera
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 560MC 20NS 208RQFP
Datasheet
EPM9560RC208-20 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Altera
Packaging Tray
Status Obsolete(EOL)
Programmable Type In System Programmable
Delay Time tpd(1) Max 20.0ns
Voltage Supply - Internal 4.75 V to 5.25 V
Number of Logic Elements/Blocks 35
Number of Macrocells 560
Number of Gates 12000
Number of I/O 153
Temperature Range - Operating 0°C to 70°C (TA)
Mounting SMD (SMT)
Case / Package 208-RQFP (28x28)
Win Source Part Number 203934-EPM9560RC208-20
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EPM9560RC208-20 CAD Model

Description

Product Overview

The EPM9560RC208-20 is a cutting-edge CPLD known for its fast processing and adaptability. This component is a perfect fit for innovative and demanding technology solutions.

Features and Benefits

  • High-Speed Processing: Ensures quick and reliable logical executions.
  • Adaptable Design: Easily programmable to meet complex requirements.
  • Longevity and Efficiency: Built for long-lasting performance with low energy use.
  • Proven Durability: Secured within a robust 208-pin Ricor casing.

Applications

  • FPGA Emulator Systems
  • Robotics
  • Broadcast Equipment
  • Instrumentation Systems
