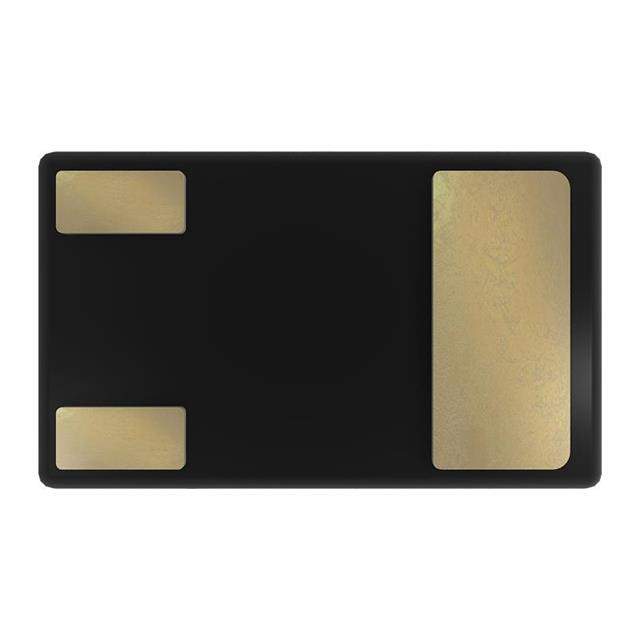

AZ5123-02F Real Image
Same model may have multiple batches, images only for reference.

AZ5123-02F

Part No AZ5123-02F
Manufacturer Amazing
Catalog TVS - Diodes
Description TVS DEVICE 2-CHANNEL 3.3V / Clamp Ipp Tvs Diode Surface Mount DFN1006P3X
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Amazing
Package Cut Tape (CT)
Type Zener
Bidirectional Channels 2
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 3.8V
Power Line Protection No
Applications General
Temperature Range - Operating -40°C ~ 85°C (TC)
Mounting SMD (SMT)
Package / Case 3-UDFN
Supplier Device Package DFN1006P3X
REACH Status Vendor Undefined
Other Names 4430-AZ5123-02FCT,4430-AZ5123-02FTR-ND,4430-AZ5123-02FTR
Win Source Part Number 1117357-AZ5123-02F
Ultra Librarian 3D Model Ultra Librarian AZ5123-02F CAD Model

Description

The Amazing electronic component with Win Source Part Number 1117357-AZ5123-02F is a Zener type circuit protection TVS - Diode.

  • Type: Zener
  • Channel: Bidirectional
  • Voltage - Reverse Standoff (Typ): 3.3V (max)
  • Voltage - Breakdown (Min): 3.8V
  • Application: General
  • Package/Case Type: 3-UDFN
