Same model may have multiple batches, images only for reference.

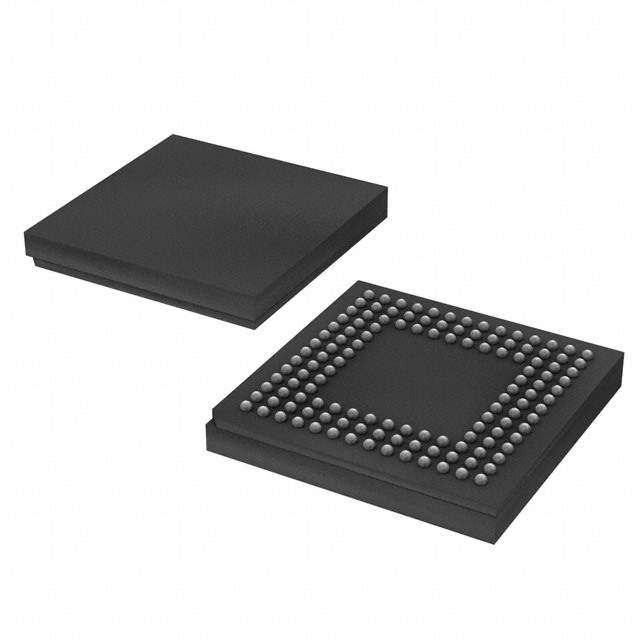

XC3S500E-4CP132I Real Image
Same model may have multiple batches, images only for reference.

XC3S500E-4CP132I

Part No XC3S500E-4CP132I
Manufacturer Amd
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 92 I/O 132CSBGA  /  series Field Programmable Gate Array (FPGA) IC 92 368640 10476 132-TFBGA, CSPBGA
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr AMD Xilinx
Series Spartan®-3E
Package Bulk
Number of LABs/CLBs 1164
Number of Logic Elements/Cells 10476
Total RAM Bits 368640
Number of I/O 92
Number of Gates 500000
Voltage - Supply 1.14V ~ 1.26V
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 100°C (TJ)
Package / Case 132-TFBGA, CSPBGA
Supplier Device Package 132-CSPBGA (8x8)
Base Product Number XC3S500
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Standard Package 360
Win Source Part Number 1020995-XC3S500E-4CP132I
Ultra Librarian 3D Model Ultra Librarian XC3S500E-4CP132I CAD Model

Description

The AMD Xilinx XC3S500E-4CP132I is an embedded Field Programmable Gate Array (FPGA) integrated circuit that belongs to the Integrated Circuits (ICs) category.

  • Series: Spartan-3E
  • I/Os: 92
  • LABs/CLBs: 1164
  • Logic Elements: 10476
  • Total RAM Bits: 368640
  • Voltage Supply Range: 1.14V to 1.26V
  • REACH: unaffected
