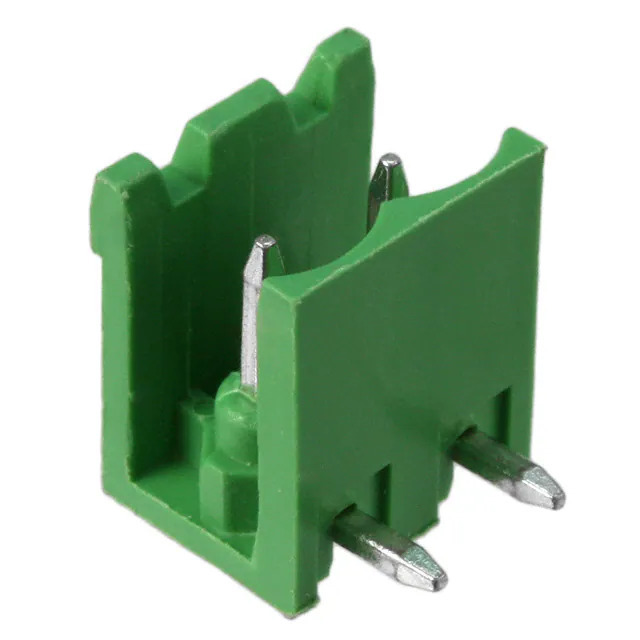

Same model may have multiple batches, images only for reference.

OQ0253510000G

Name: OQ0253510000G
Brand: Amphenol Anytek
SKU: 1364611
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	OQ0253510000G
Manufacturer	Amphenol Anytek
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 2POS 90DEG 5.08MM / 2 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Datasheet	OQ0253510000G Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	Amphenol Anytek
Series	06-508
Package	Bulk
Product Status	Active
Type	Header, Male Pins, Shrouded (2 Side)
Number of Positions	2
Positions Per Level	2
Number of Levels	1
Pitch	0.200" (5.08mm)
Header Orientation	90°, Right Angle
Plug Wire Entry	-
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	-
Current - UL	12 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	-
Wire Gauge or Range - mm²	-
Color	Green
Temperature Range - Operating	-40°C ~ 115°C
Contact Mating Finish	Tin
Features	-
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	-
Contact Material	Copper Alloy
Housing Material	Thermoplastic Resin
Contact Tail Length	0.138" (3.50mm)
Insulation Height	0.335" (8.51mm)
Base Product Number	OQ02
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1364611-OQ0253510000G
Ultra Librarian 3D Model	Ultra Librarian OQ0253510000G CAD Model

Alternative Products

Description

The OQ0253510000G is a male header terminal block from Amphenol Anytek.

Series: 06-508
Packaging: Bulk
Type: Header, Male Pins, Shrouded
Number of Positions: 2
Pitch: 0.200" (5.08mm)
Insulation Height: 0.335" (8.51mm)
Contact Material: Copper Alloy
Contact Finish: Tin
Flammability Rating: UL94 V-0
Operating Temperature: -40°C ~ 115°C
Current Rating (Amps): 12A
Mounting Type: Through Hole
