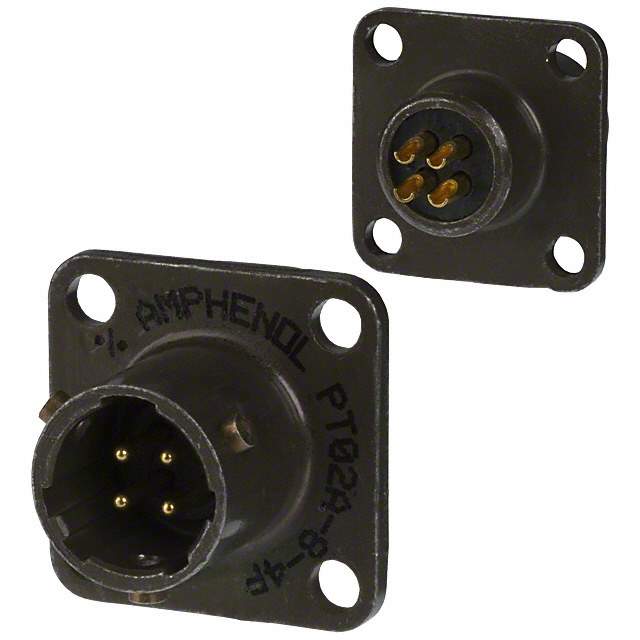

PT02A-8-4P Real Image
Same model may have multiple batches, images only for reference.

PT02A-8-4P

Part No PT02A-8-4P
Manufacturer Amphenol Industrial Operations
Catalog Circular Connectors
Description CONN RCPT MALE 4P GOLD SLDR CUP  /  4 Position Circular Connector Receptacle, Male Pins Solder Cup
Datasheet
PT02A-8-4P Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Amphenol Industrial Operations
Series MIL-DTL-26482 Series I, PT
Package Bulk
Connector Type Receptacle, Male Pins
Number of Positions 4
Shell Size - Insert 8-4
Mounting Type Panel Mount
Mounting Feature Flange
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum
Shell Finish Olive Drab Chromate over Cadmium
Contact Finish - Mating Gold
Color Olive Drab
Shielding Unshielded
Temperature Range - Operating -55°C ~ 125°C
Backshell Material, Plating Aluminum, Olive Drab Cadmium
Contact Material Copper Alloy
Insert Material Neoprene
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Base Product Number PT02A
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4020
Other Names 71-146208-04P,PT02A8-4P-ND,7114620804P,AU71-146208-04P,PT02A84P,U71-146208-04P,PT02A8-4P
Standard Package 1
Win Source Part Number 1086223-PT02A-8-4P
Ultra Librarian 3D Model Ultra Librarian PT02A-8-4P CAD Model

Description

The Amphenol Industrial Operations 1086223-PT02A-8-4P is a circular connector with male pins. 1086223-PT02A-8-4P is a circular connector with male pins. Amphenol Industrial Operations manufactures it.

  • Positions: 4
  • Termination: Solder Cup
  • Application: Aerospace, Industrial, Instrumentation, Mass Transit, and Military applications
  • Fastening Type: Bayonet Lock
  • Shell Material: Aluminum
  • Shell Finish: Olive Drab Chromate over Cadmium
  • Contact Finish for Mating: Gold
  • Shielding: Unshielded
  • Voltage Rating: Unspecified
  • Shell Size: 8-4
  • Current Rating: Unspecified
  • Temperature Range: -55°C to 125°C
