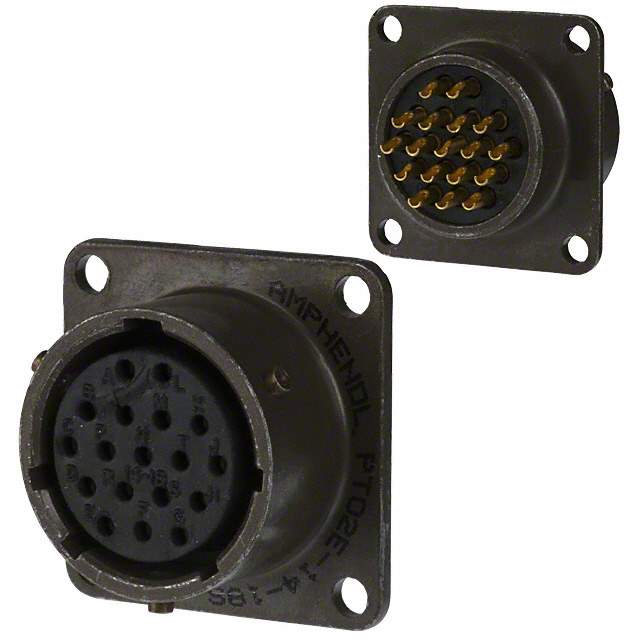

PT02E-14-18S Real Image
Same model may have multiple batches, images only for reference.

PT02E-14-18S

Part No PT02E-14-18S
Manufacturer Amphenol Industrial Operations
Catalog Circular Connectors
Description CONN RCPT FMALE 18P SOLDER CUP / 18 Position Circular Connector Receptacle, Female Sockets Solder Cup
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Amphenol Industrial Operations
Series MIL-DTL-26482 Series I, PT
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 18
Shell Size - Insert 14-18
Mounting Type Panel Mount
Mounting Feature Flange
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum
Shell Finish Olive Drab Chromate over Cadmium
Contact Finish - Mating Gold
Color Olive Drab
Ingress Protection Environment Sealed
Shielding Unshielded
Temperature Range - Operating -55°C ~ 125°C
Backshell Material, Plating Aluminum, Olive Drab Cadmium
Contact Material Copper Alloy
Insert Material Neoprene
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Base Product Number PT02E
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4020
Other Names U71-148214-18S,PT02E1418S,PT02E14-18S
Standard Package 1
Win Source Part Number 1029679-PT02E-14-18S
Ultra Librarian 3D Model Ultra Librarian PT02E-14-18S CAD Model

Description

The 1029679-PT02E-14-18S is a circular connector manufactured by Amphenol Industrial Operations.

  • Series: MIL-DTL-26482 series I, PT series
  • Sockets: 18 female sockets
  • Applications: aerospace, industrial, instrumentation, mass transit, and military applications
  • Material: copper alloy
  • Ingress Protection Rating: environment-sealed
  • Fastening Type: bayonet lock
  • Mounting Type: panel mount
  • Shell Size: 14-18
  • Shell Material: aluminum with an olive drab chromate over cadmium finish
  • Temperature Range: -55°C to 125°C
  • RoHS: non-compliant
