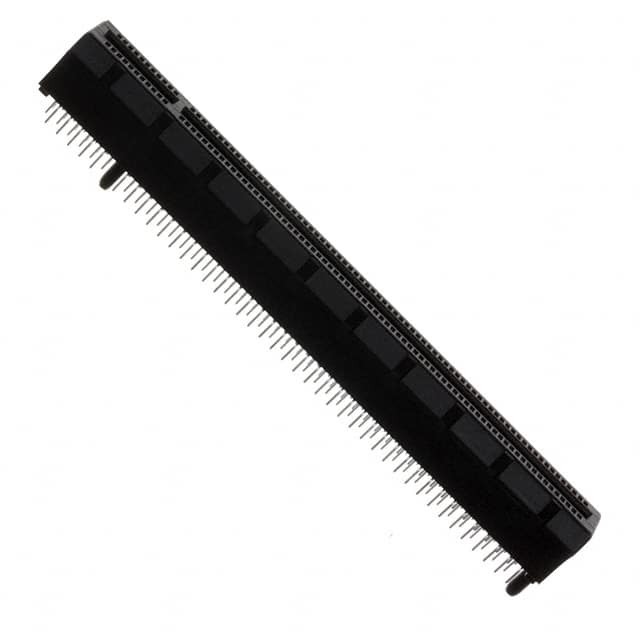

Part No 10018784-10103TLF
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FMALE 164POS 0.039 / 164 Position Female Connector PCI Express? Gold 0.039" (1.00mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr Amphenol
Series HPCE®
Package Tray
Product Status Active
Card Type PCI Express™
Gender Female
Number of Positions 164
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Guide, Locking Ramp
Mounting Type Through Hole
Termination Solder, Staggered
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Polyamide (PA), Nylon, Glass Filled
Base Product Number 10018784
Standard Package 30 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 904811-10018784-10103TLF
Ultra Librarian 3D Model Ultra Librarian 10018784-10103TLF CAD Model

Description

The Amphenol 904811-10018784-10103TLF is an edgeboard connector from the HPCE® series from Amphenol.

  • Connector Type: Female connector with cantilever contacts
  • Positions: 164
  • Pitch: 0.039" (1.00mm)
  • Color: Black
  • Features: Board guide and locking ramp features
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Package: Tray
  • Contact Material: Copper alloy
  • Insulation Material: Polyamide (PA), nylon, glass filled
  • Card Type: PCI Express™
  • Card Thickness: 0.062" (1.57mm)
  • Flange Feature: None
  • Mounting: Through hole
  • Operating Temperature Range: -55°C to 85°C
  • ECCN: EAR99
  • REACH: Unaffected
