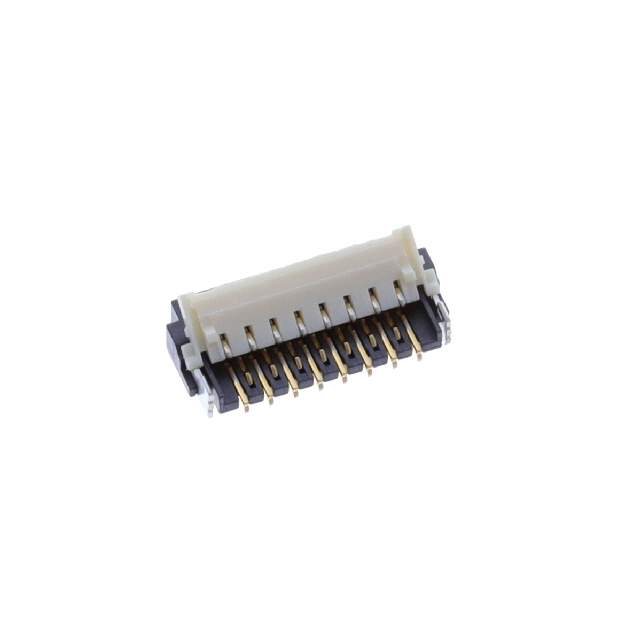

10061122-151120HLF

Name: 10061122-151120HLF
Brand: Amphenol
SKU: 1333391
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	10061122-151120HLF
Manufacturer	Amphenol
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 15POS 0.30MM R/A / 15 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer	Amphenol ICC (FCI)
Packaging	Reel - TR
Product Status	Obsolete
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	15
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.035" (0.88mm)
Locking Feature	Flip Lock
Cable End Type	Tabbed
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Thermoplastic, Halogen Free
Actuator Material	Thermoplastic, Halogen Free
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	30V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.2A
Housing Color	Black
Actuator Color	Black
Mating Cycles	10
Base Product Number	10061122
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4051
Other Part Number	10061122-151120HLF-ND,609-10061122-151120HLFCT,609-10061122-151120HLFTR
Standard Package	5,000
Win Source Part Number	1333391-10061122-151120HLF
Ultra Librarian 3D Model	Ultra Librarian 10061122-151120HLF CAD Model

Description

The Amphenol FFC/FPC Connector Assembly is a 15-position electronic component with a pitch of 0.012" (0.30mm).

Features: Solder Retention and Zero Insertion Force (ZIF)
Contact Finish: Gold
Contact Material: Copper Alloy
Voltage Rating: 30V
FFC/FCB Thickness: 0.30mm
Locking Feature: Flip Lock
Cable End Type: Tabbed
Housing Material: Thermoplastic, Halogen-Free
Housing Color: Black
Mounting: Surface Mount, Right Angle
Temperature Range: -55°C to 85°C
