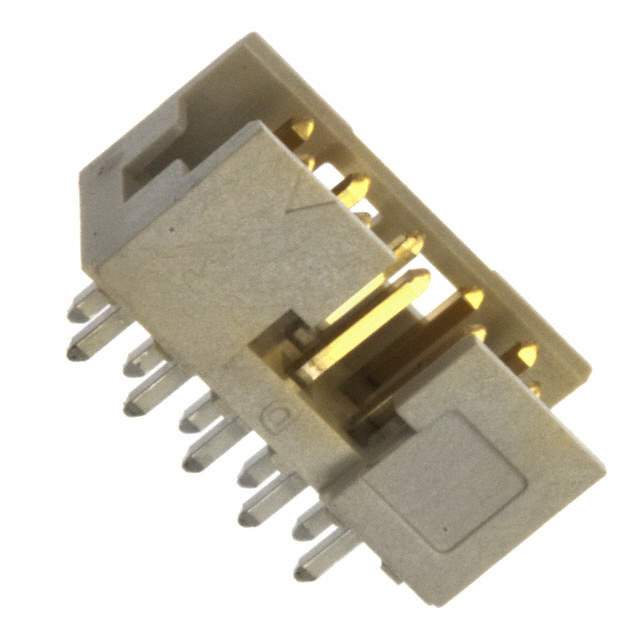

Same model may have multiple batches, images only for reference.

10075025-G01-10ULF

Name: 10075025-G01-10ULF
Brand: Amphenol
SKU: 1350437
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	10075025-G01-10ULF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2MM / Connector Header Through Hole 10 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	Minitek® 2.00mm
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.157" (4.00mm)
Contact Length - Post	0.079" (2.00mm)
Insulation Height	0.220" (5.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	Keying Slot
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	2A (AC/DC)
Voltage Rating	200V (AC/DC)
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	10075025
Standard Package	47
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350437-10075025-G01-10ULF
Ultra Librarian 3D Model	Ultra Librarian 10075025-G01-10ULF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) 1350437-10075025-G01-10ULF is a header male pin rectangular connector.

Positions: 10
Keying: Slot
Series: Minitek 2.00mm
Connector Type: Header
Contact Type: Male Pin
All Positions Loaded: Yes
Number of Rows: 2
Termination: Solder
Fastening Type: Detent Lock
Package: Tube
Standard Package: 47
Contact Material: Copper Alloy
Voltage Rating: 200V (AC/DC)
REACH: Affected
HTSUS: 8536.69.4040
