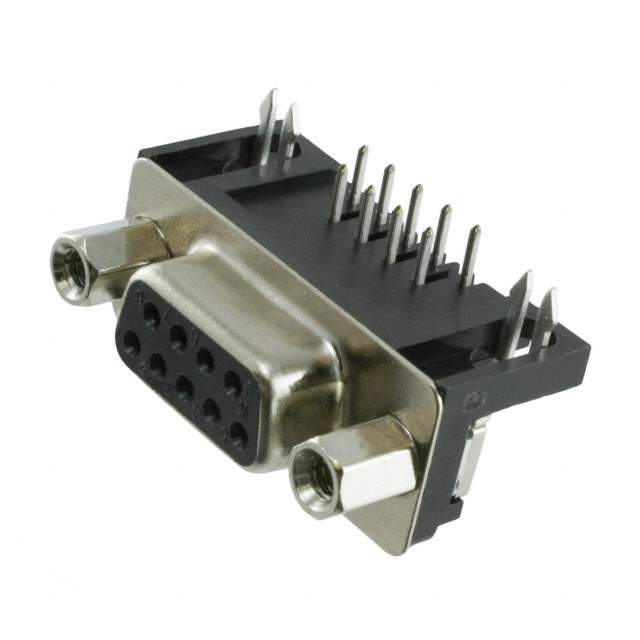

10090099-S094VLF Real Image1 10090099-S094VLF Real Image2
10090099-S094VLF Real Image1 10090099-S094VLF Real Image2
Same model may have multiple batches, images only for reference.

10090099-S094VLF

Part No 10090099-S094VLF
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS R/A SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
10090099-S094VLF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Mfr Amphenol
Series 10090099
Package Tray
Product Status Obsolete
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Board Edge, Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A per Contact
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Mounting Brackets
Voltage Rating 250V
Color Black
Contact Form -
Dielectric Material Thermoplastic, Glass Filled
Wire Gauge -
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 10090099
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 90 pcs
Win Source Part Number 1380468-10090099-S094VLF
Ultra Librarian 3D Model Ultra Librarian 10090099-S094VLF CAD Model

Description

The 10090099 series D-Sub connector assembly is a high-quality electronic component manufactured by Amphenol.

  • Category: Connectors, Interconnects - D-Sub, D-Shaped Connectors
  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Positions: 9
  • Features: Board Lock and Mounting Brackets
  • Contact Type: Signal
  • Contact Finish: Gold with Flash
  • Connector Style: D-Sub
  • Voltage Rating: 250V
  • Shell Material: Steel with Tin-Nickel Plated Finish
  • Temperature Range: -55°C to 105°C
  • Status: Obsolete
  • Standard Package: 90 pieces
