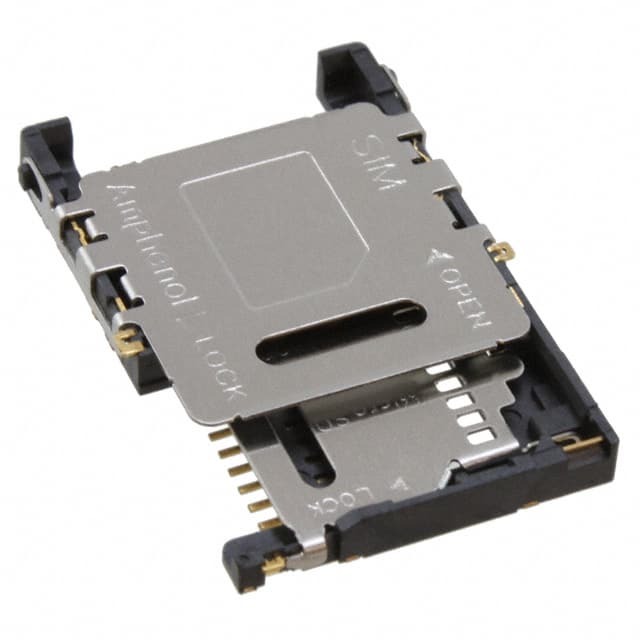

101-00492-20
Same model may have multiple batches, images only for reference.

101-00492-20

Part No 101-00492-20
Manufacturer Amphenol
Catalog Memory Connectors - PC Card Sockets
Description CONN MICRO SD/SIM CARD R/A SMD
Datasheet
101-00492-20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr Amphenol
Package Tape & Reel
Product Status Obsolete
Card Type Combo - microSD™, SIM
Number of Positions 16
Connector Type Connector and Ejector
Insertion, Removal Method Hinged Lid
Mounting Type Surface Mount, Right Angle
Features Board Guide
Height Above Board 0.116" (2.95mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 101-00492
Standard Package 600 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853601-101-00492-20
Ultra Librarian 3D Model Ultra Librarian 101-00492-20 CAD Model

Description

The 853601-101-00492-20 is a PC Card Socket connector from Amphenol.

  • Number of Positions: 16
  • Feature: Board Guide
  • Connector Type: Connector and Ejector
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0μin (0.38μm)
  • Package: Tape & Reel
  • Height Above Board: 0.116" (2.95mm)
  • Card Type: Combo microSD™ and SIM
  • Insertion/Removal Method: Hinged Lid
  • Mounting Feature: Normal, Standard-Top
  • Mounting Type: Surface Mount, Right Angle
  • Product Status: Obsolete
  • Standard Package: 600 pcs
