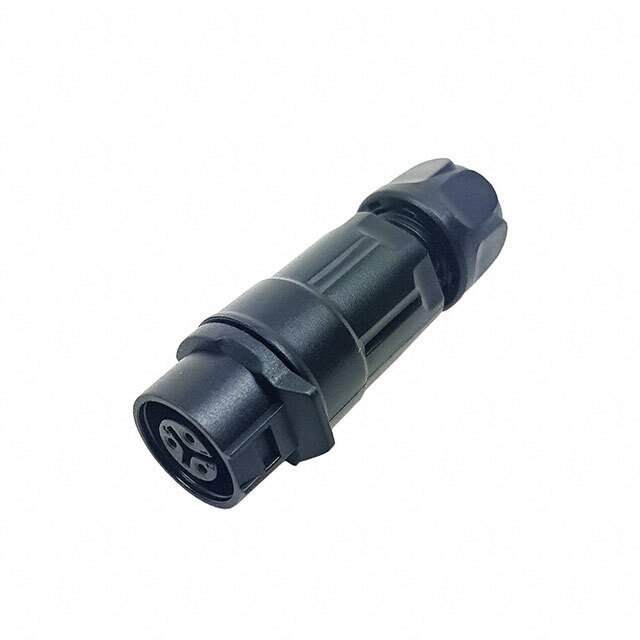

MRD-AH03-M15-000 Real Image
Same model may have multiple batches, images only for reference.

MRD-AH03-M15-000

Part No MRD-AH03-M15-000
Manufacturer Amphenol
Catalog Circular Connectors
Description CONN RCPT FMALE 3P GOLD SLDR CUP / 3 Position Circular Connector Receptacle, Female Sockets Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Amphenol ICC (Commercial Products)
Series MRD
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 3
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Latch Lock
Orientation Keyed
Primary Material Plastic
Shell Material Polybutylene Terephthalate (PBT)
Contact Finish - Mating Gold
Color Black
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Features Backshell
Shielding Unshielded
Current Rating (Amps) 5A
Voltage Rating 125VAC
Temperature Range - Operating -55°C ~ 105°C
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Contact Material Copper Alloy
Contact Finish Thickness - Mating Flash
Insert Material Polybutylene Terephthalate (PBT)
Applications Industrial
Base Product Number MRD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Names MRDAH03M15000
Standard Package 1
Win Source Part Number 1055171-MRD-AH03-M15-000
Ultra Librarian 3D Model Ultra Librarian MRD-AH03-M15-000 CAD Model

Description

The Amphenol ICC (Commercial Products) MRD-AH03-M15-000 is a circular connector with a receptacle and female sockets.

  • Positions: 3
  • Color: black
  • Backshell: Yes
  • Termination: solder cup
  • Fastening Type: latch lock
  • Package: bulk
  • Contacts Material: copper alloy
  • Contacts Finish: gold
  • Ingress Protection: IP67
  • Shielded: unshielded
  • Material Flammability: UL94 V-0
  • Orientation: keyed
  • Operating Temperature: -55°C to 105°C
  • Shell Material: polybutylene terephthalate (PBT)
  • Insert Material: polybutylene terephthalate (PBT)
  • ECCN: EAR99 compliant
  • HTSUS: 8536.69.4020
