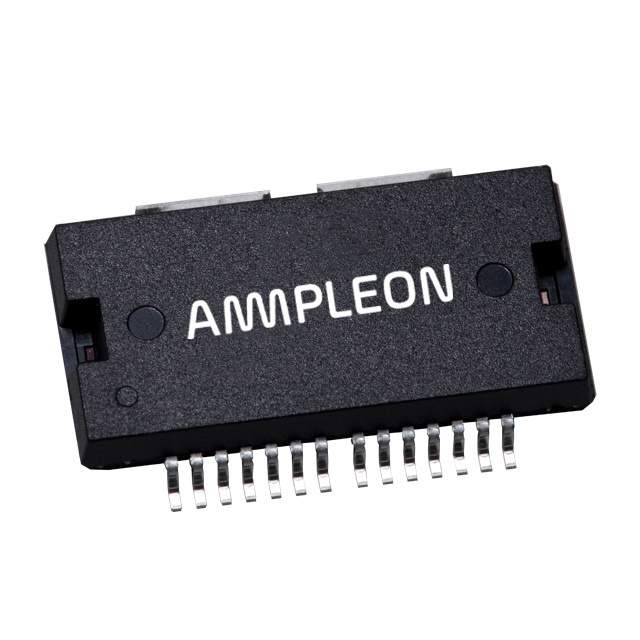

BLM7G1822S-80ABGY

Part No BLM7G1822S-80ABGY
Manufacturer Ampleon USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description RF FET LDMOS 65V 31DB SOT12121 / LDMOS 2-STAGE POWER MMIC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Ampleon USA Inc.
Packaging Reel package
Transistor Type LDMOS (Dual)
Frequency 2.17GHz
Gain 31dB
Voltage - Test 28V
Current - Test 40mA
Power - Output 4W
Voltage Rating DC 65V
Package SOT-1212-1
Manufacturer Package 16-HSOP
Win Source Part Number 770223-BLM7G1822S-80ABGY
Popularity Medium
Supply and Demand Status Limited
Family Name BLM7G1822S-80ABG
Introduction Date December 07, 2015
Country of Origin China, Philippines
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian BLM7G1822S-80ABGY CAD Model

Description

The BLM7G1822S-80ABGY is a high-power LDMOS transistor from Ampleon USA Inc. that operates at a frequency of 2.17GHz.

  • Gain: 31dB
  • Power Output: 4W
  • Configuration: Dual Common Source
  • Voltage Rating DC: 65V
  • Package: 16-HSOP
  • Packaging: Reel
