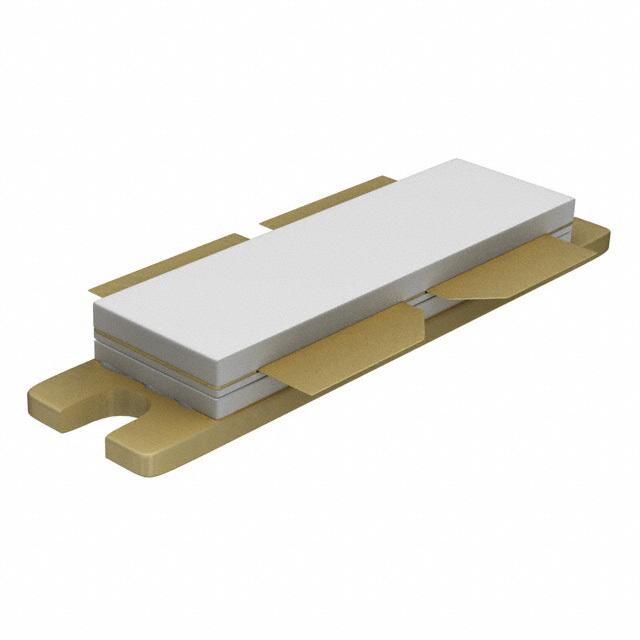

LF8781

Part No LF8781
Manufacturer Ampleon USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description RF FET LDMOS 89V 21DB SOT979A
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Ampleon USA Inc.
Packaging Tube/Rail
Status Obsolete(EOL)
Transistor Polarity LDMOS (Dual), Common Source
Frequency 860MHz
Gain 21dB
Voltage - Test 40V
Current - Test 1.4A
Power - Output 300W
Voltage Rating 89V
Case / Package CDFM2
Win Source Part Number 206176-LF8781
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LF8781 CAD Model

Description

The Ampleon USA Inc. LF8781 is a high-performance LDMOS transistor designed for use in RF applications.

  • Package: Tube/rail
  • Voltage Rating: 89V
  • Frequency Range: 860MHz
  • Current Test: 1.4A
  • Gain: 21dB
  • Transistor Polarity: LDMOS (Dual), Common Source
  • Voltage Test: 40V
  • Power Output: 300W
  • ECCN: EAR99
  • Supply and Demand Status: Limited
