The AD524BDZ is a high-performance instrumentation amplifier from Analog Devices Inc., designed to offer precision, low noise, and high gain accuracy for a wide range of applications. This versatile component is engineered to deliver outstanding linearity and is particularly suited for situations where precision signal processing is paramount.

Key Features

• Gain Range: The AD524BDZ offers a pre-trimmed gain range from 1 to 1000, which can be set with a single external resistor. This feature provides flexibility and precision in amplification requirements.
• High Accuracy: With a gain accuracy of ±0.15% at G = 1, this instrumentation amplifier ensures reliable and consistent performance for critical measurements.
• Low Noise: The device boasts an exceptionally low noise density of 0.3 µV/√Hz at 1 kHz, making it ideal for applications that require clean signal amplification.
• Low Input Bias Current: The AD524BDZ has a low input bias current of 25 nA max, which is beneficial for high impedance source applications.
• Wide Power Supply Range: It operates effectively with a single supply range of 4.5 V to 36 V, or dual supplies of ±4.5 V to ±18 V, providing versatility in different circuit configurations.

Applications

The AD524BDZ is well-suited for a variety of applications, including:

• Medical instrumentation
• Industrial process controls
• Data acquisition systems
• Strain gage amplifiers
• Precision data systems

Reliability and Support

As a product of Analog Devices Inc., the AD524BDZ is backed by a reputation for quality and reliability in the field of precision electronics. Technical support and comprehensive documentation are available, assisting designers in integrating this component into their systems with confidence.

Package and Availability

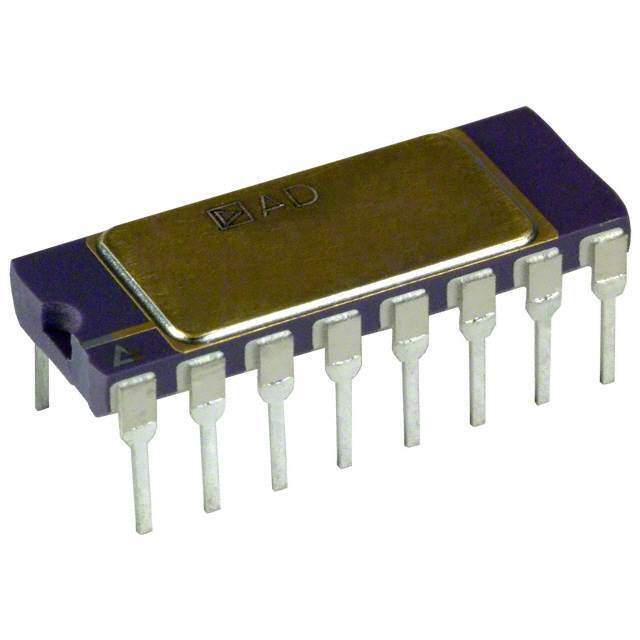

The AD524BDZ is available in a 16-lead ceramic DIP (CERDIP) package, ensuring robustness and durability for various operating environments. It is designed for easy implementation into electronic systems, with a straightforward pin configuration that simplifies the design process.
