Product Overview: AD5346BRUZ-REEL7

The AD5346BRUZ-REEL7 is a high-performance, octal, 12-bit digital-to-analog converter (DAC) from the reputable semiconductor manufacturer Analog Devices Inc. This precision DAC is designed for a wide range of applications that require accurate digital control over analog outputs, making it an ideal choice for industrial control systems, automated test equipment, and data acquisition systems.

Key Features

• Resolution: The AD5346BRUZ-REEL7 boasts a 12-bit resolution, providing fine-grained control over the analog output, which is essential for applications requiring high precision.
• Channels: This device features eight independent DAC channels, allowing for multiple outputs to be controlled simultaneously, which can significantly simplify system design and reduce component count.
• Interface: It includes a versatile 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards, ensuring easy integration with a wide range of microcontrollers and digital systems.
• Supply Voltage: The DAC operates from a 2.7 V to 5.5 V supply, providing flexibility for use in both 3.3 V and 5 V systems.

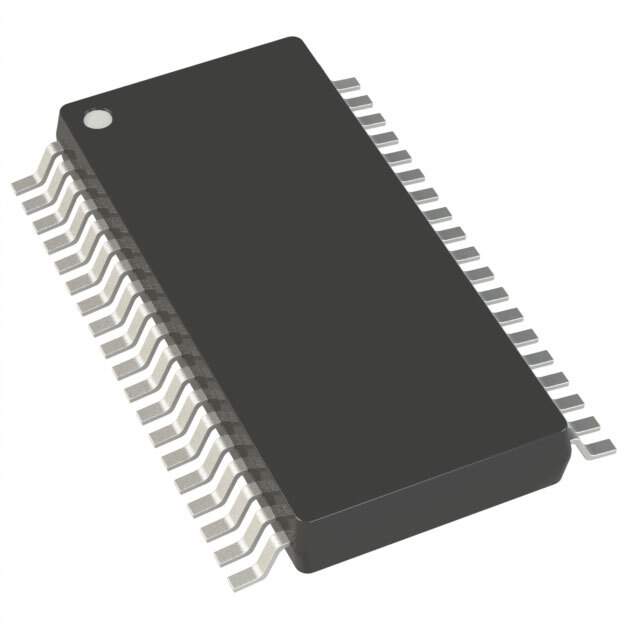

• Package: The AD5346BRUZ-REEL7 is offered in a compact TSSOP (Thin Shrink Small Outline Package), which is suitable for space-constrained applications.
• Temperature Range: It is specified for operation over the extended industrial temperature range of -40°C to +105°C, ensuring reliable performance in harsh environments.
• On-chip Output Buffer: Each DAC channel has its own on-chip output buffer amplifier, which can drive the output to both supply rails.

Applications

The versatility and performance of the AD5346BRUZ-REEL7 make it an excellent choice for a broad array of applications. It is particularly well-suited for:

• Process control and automation
• Data acquisition systems
• Digital gain and offset adjustment
• Programmable voltage and current sources
• Programmable attenuators

With its combination of features, the AD5346BRUZ-REEL7 from Analog Devices Inc. is a robust and reliable DAC solution that meets the needs of advanced analog systems requiring high precision and multiple output channels.
