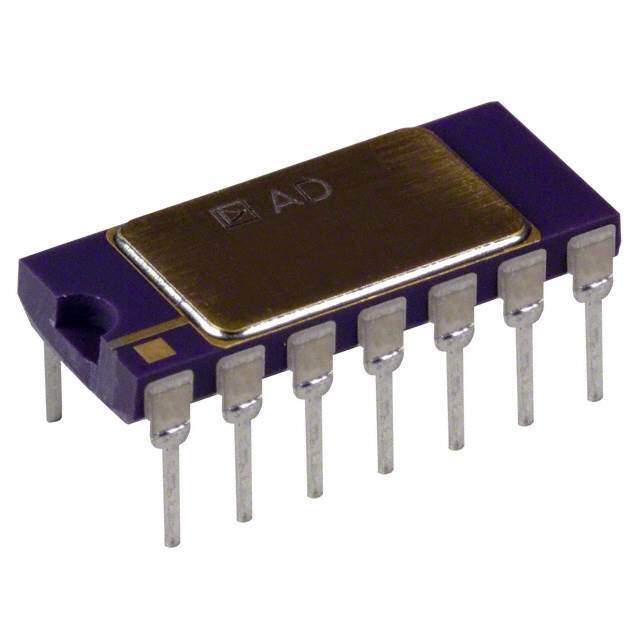

Analog Devices AD536AJDZ Integrated Circuit

The AD536AJDZ is a sophisticated integrated circuit produced by the renowned manufacturer, Analog Devices Inc. This high-performance component is designed to offer an accurate computation of true root-mean-square (RMS) value of any complex waveform. It is a complete RMS-to-DC converter that integrates a precision voltage reference and a high bandwidth operational amplifier to accommodate signal levels from low millivolts to several volts.

Key Features

• True RMS-to-DC Conversion: The AD536AJDZ accurately measures the RMS value of AC and DC voltages, ensuring precise readings for complex waveforms, including those with a significant DC component or with variable duty cycles.
• Wide Bandwidth: With a bandwidth capability that extends from DC to over 450 kHz, this device is suitable for a vast array of applications, ranging from audio signal processing to RF and communication systems.
• High Accuracy: The AD536AJDZ provides a high accuracy of measurement with a typical error of less than ±0.5% of the full scale.
• Low Power Consumption: It is designed for efficiency, requiring low power, which makes it ideal for portable and battery-operated equipment.
• Temperature Stability: The integrated circuit offers excellent temperature stability, ensuring reliable performance across a wide range of operating conditions.

Applications

The AD536AJDZ is versatile and can be used in a variety of applications, including:

• Power management systems
• Signal processing
• Instrumentation
• AC motor controls
• Ultrasound and sonar signal processing

Product Specifications

The device comes in a hermetically sealed TO-100 metal can package, ensuring robustness and longevity. It operates over a temperature range of -55°C to +125°C, which makes it suitable for industrial-grade applications. The AD536AJDZ requires a single supply voltage between +5 V and +36 V or dual supplies of ±5 V to ±18 V, providing flexibility in system design.

In conclusion, the AD536AJDZ from Analog Devices Inc. is a reliable and accurate RMS-to-DC converter that integrates seamlessly into a wide range of electronic systems. Its precision, coupled with its robust packaging, makes it an excellent choice for engineers and designers looking for a dependable solution in RMS measurement.
