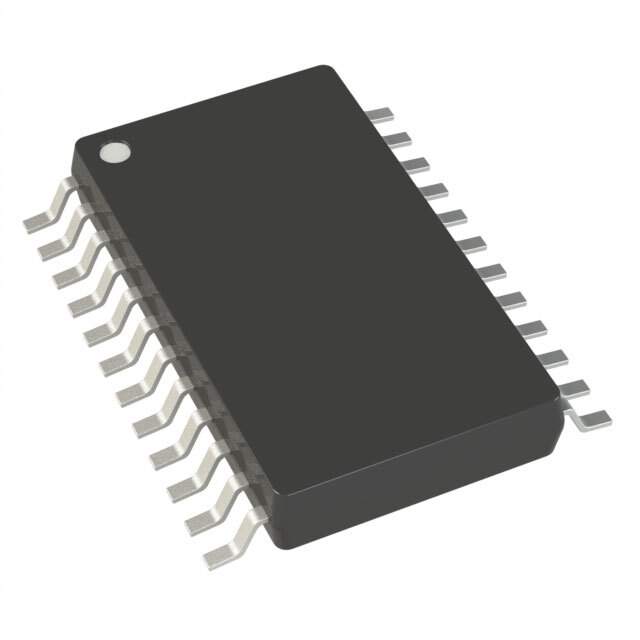

AD5420AREZ Digital-to-Analog Converter

The AD5420AREZ is a high-performance, single-channel, 16-bit, serial input, current output digital-to-analog converter (DAC) from Analog Devices Inc. Designed to operate in demanding industrial environments, the AD5420AREZ offers a robust feature set that makes it ideal for process control, automated test equipment, and other applications requiring precise signal conversion and consistent performance.

Key Features:

• High Resolution: With its 16-bit resolution, the AD5420AREZ ensures accurate signal conversion, providing high precision for industrial control systems.
• Programmable Current Output: The device can be programmed to output current in the range of 4 mA to 20 mA, 0 mA to 20 mA, or an extended range of 0 mA to 24 mA, making it versatile for various applications and requirements.
• On-Chip Output Fault Detection: The AD5420AREZ includes fault detection capabilities, which can alert the system to potential issues such as open circuits, allowing for timely maintenance and reducing system downtime.
• Flexible Serial Interface: The DAC features a flexible serial peripheral interface (SPI) that is compatible with 3.3V and 5V logic levels, facilitating easy integration into a wide range of systems.
• Robust Electrical Specifications: It operates over a wide temperature range and is characterized by excellent stability and low drift, ensuring reliable performance in challenging conditions.
• Integrated Voltage Regulator: The inclusion of an on-chip, 7 V to 36 V regulator allows for single-supply operation, simplifying power supply design.

Applications:

The AD5420AREZ is suited for a variety of industrial and instrumentation applications, including:

• Process control actuators and sensors
• Programmable logic controllers (PLCs)
• Distributed control systems (DCS)
• Automated test equipment (ATE)

With its combination of high resolution, programmable output, and fault detection, the AD5420AREZ is a reliable and efficient solution for systems that require high-quality analog output signals. Its robust design and versatile features make it a top choice for engineers looking to enhance the performance and reliability of their industrial control systems.
