Analog Devices Inc. AD7224KRZ-18 Digital-to-Analog Converter

The AD7224KRZ-18 is a precision 8-bit digital-to-analog converter (DAC) designed and manufactured by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This particular model boasts an impressive array of features that make it an excellent choice for a wide range of applications, including process control, data acquisition systems, and digital signal processing.

At the heart of the AD7224KRZ-18 is a laser-trimmed DAC chip that ensures high accuracy and stability. This DAC offers a settling time of just 150 ns, making it suitable for high-speed applications where quick data conversions are critical. The device operates from a single +5V to +15V supply or dual ±5V to ±15V supplies, providing flexibility in system design and power management.

One of the standout features of the AD7224KRZ-18 is its user-friendly interface, which includes a double-buffered input structure. This allows the user to update the DAC with new data while the previous data is still being converted, thereby minimizing latency and allowing for seamless data flow. The device also includes a data readback function, which permits the reading of the contents of the DAC register via the digital interface.

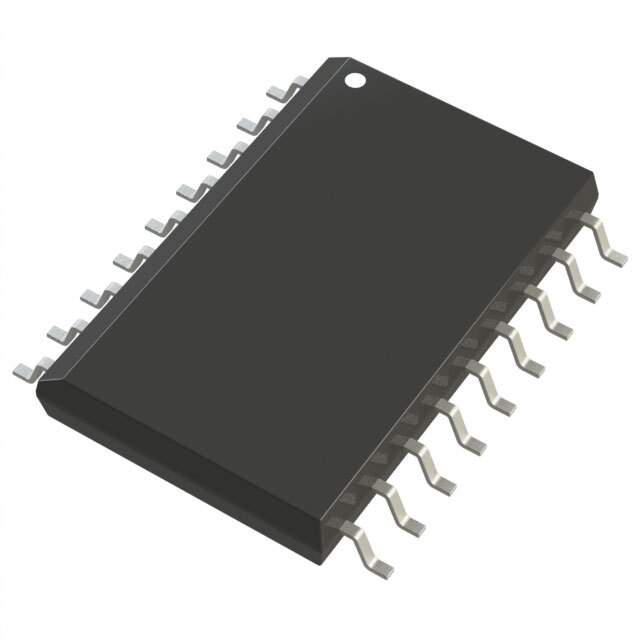

The AD7224KRZ-18 is available in a compact 18-lead SOIC (Small Outline Integrated Circuit) package, making it easy to integrate into space-constrained designs. The device also features a power-on reset circuit, which ensures that the DAC output initializes to zero volts on power-up, and a clear function that immediately sets the output to zero volts when activated.

For designers concerned about reliability and longevity, the AD7224KRZ-18 is specified over the extended industrial temperature range of -40°C to +85°C. This temperature range, combined with the robust construction of the device, ensures reliable performance in harsh environmental conditions.

In summary, the AD7224KRZ-18 from Analog Devices Inc. is a versatile and high-performing DAC that offers precision, speed, and ease of use for engineers looking to incorporate digital-to-analog conversion into their electronic designs.
