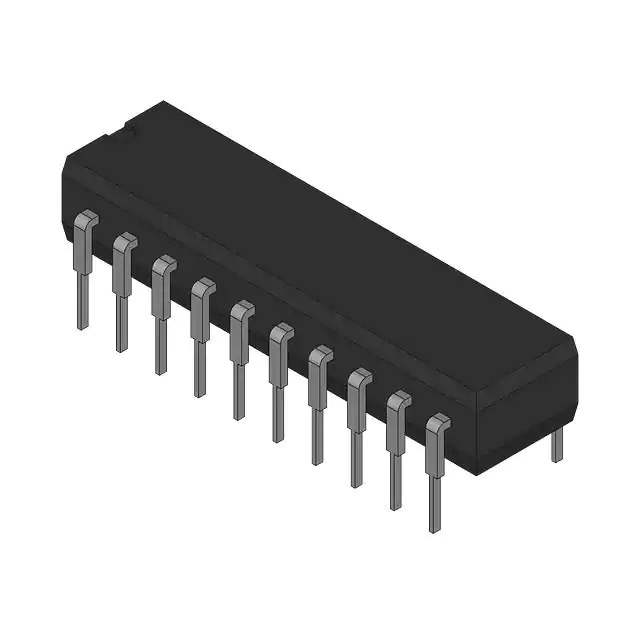

The AD7750AN is a high-performance energy metering IC designed by Analog Devices Inc., a leader in the semiconductor industry. This integrated circuit is specifically crafted for the accurate measurement of active energy in single-phase electrical power systems. It is a crucial component for applications such as residential energy meters, industrial energy monitoring systems, and smart metering solutions.

Key Features

• High Accuracy: The AD7750AN boasts excellent linearity and low offset, which results in precise energy measurement over a wide dynamic range, making it suitable for both low and high current applications.
• On-Chip ADC: It includes a high-resolution analog-to-digital converter (ADC) that ensures accurate analog signal conversion, enhancing the reliability of energy measurements.
• Pulse Output: The device provides a frequency output proportional to the power consumption, which can be easily interfaced with microcontrollers for further processing and analysis.
• Minimal External Components: Designed for easy implementation, the AD7750AN requires only a minimal number of external components, reducing the overall cost and complexity of the metering solution.
• Supply Voltage: It operates efficiently with a supply voltage range that accommodates standard industrial levels, providing versatility in various power supply environments.

Applications

The AD7750AN is well-suited for a range of applications, including:

• Residential and commercial energy meters
• Smart metering systems
• Power monitoring in industrial settings
• Renewable energy monitoring (solar, wind, etc.)

Technical Specifications

Parameter Value Accuracy High ADC Resolution High Output Type Pulse Supply Voltage Standard Industrial Levels Package DIP-24

For engineers and designers seeking a reliable and accurate energy metering solution, the AD7750AN from Analog Devices Inc. stands out as a top choice, thanks to its precision, ease of integration, and versatility across a multitude of energy-related applications.
