Product Overview: AD8436ARQZ-R7

The AD8436ARQZ-R7 is a high-performance, integrated true RMS-to-DC converter manufactured by Analog Devices Inc., a leader in precision high-performance integrated circuits. This product is designed to deliver a precise representation of the true root-mean-square value of complex waveforms, regardless of waveform shape or amplitude. The AD8436ARQZ-R7 is an essential component in a wide range of applications, including precision instrumentation, power management systems, and audio equipment.

Key Features

• High Accuracy: The AD8436ARQZ-R7 provides highly accurate RMS calculations, making it suitable for critical measurement tasks.
• Wide Bandwidth: With a bandwidth that extends from DC to 6 kHz, this converter can handle a broad range of signal frequencies.
• Low Power Consumption: Designed for energy efficiency, the AD8436ARQZ-R7 operates with a low power requirement, which is ideal for portable and battery-operated devices.
• Dual Supply Operation: It can be powered from dual supplies, further enhancing its versatility in various circuit configurations.

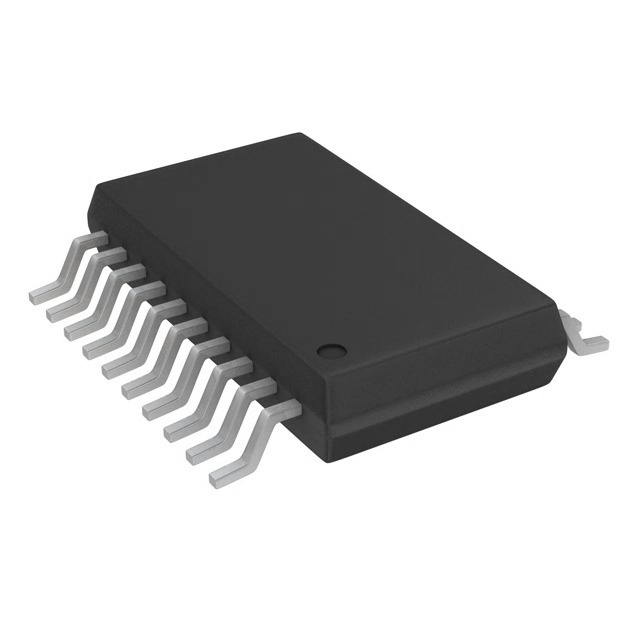

• Robust Package: The device comes in a compact 16-lead QSOP (RQZ) package, which is suitable for space-constrained applications.

Applications

The AD8436ARQZ-R7 is highly versatile and can be used in various applications, including:

• Audio signal processing and power measurement
• Industrial control systems
• Test and measurement equipment
• Battery-powered and portable devices
• Energy management and power quality monitoring

Product Specifications

Some of the technical specifications for the AD8436ARQZ-R7 include:

• Supply Voltage: ±2.4 V to ±5.5 V
• Operating Temperature Range: -40°C to +125°C
• Package: 16-Lead QSOP (RQZ)
• RoHS Compliant: Yes

In conclusion, the AD8436ARQZ-R7 from Analog Devices Inc. is a reliable and precise RMS-to-DC converter that meets the demands of modern electronic systems. Its high accuracy, wide bandwidth, and low power consumption make it an excellent choice for designers seeking to incorporate RMS measurement capabilities into their applications.
