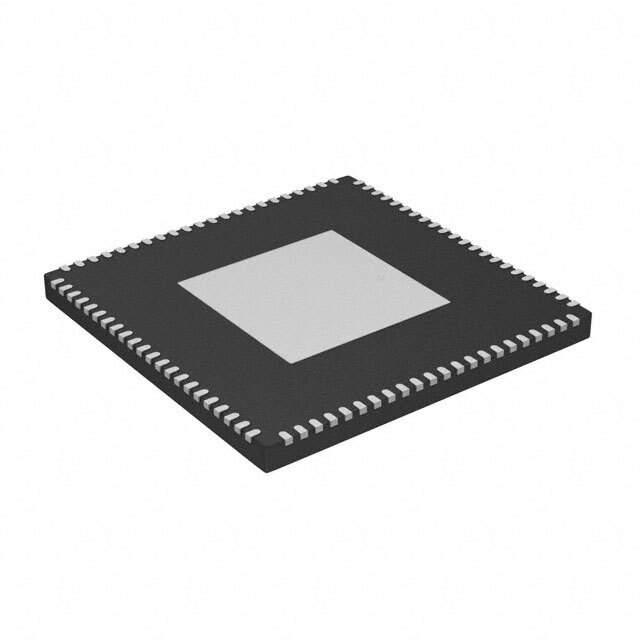

AD9144BCPZ Quad, 16-Bit, 1.25 GSPS, JESD204B DAC

The AD9144BCPZ from Analog Devices Inc. is a high-performance, quad-channel digital-to-analog converter (DAC) that delivers exceptional speed and accuracy for demanding applications in communications, instrumentation, and defense systems. This 16-bit DAC operates at conversion rates up to 1.25 GSPS (giga-samples per second), enabling the synthesis of wideband signals with excellent dynamic range and fidelity.

Key Features:

• High-Speed Performance: With a maximum sampling rate of 1.25 GSPS, the AD9144BCPZ enables the generation of high-frequency signals with wide bandwidths, making it ideal for advanced communication systems such as 4G LTE and 5G.
• Quad-Channel Output: The device features four DAC channels, which allows for the simultaneous synthesis of multiple signals or complex I/Q modulation schemes.
• High Dynamic Range: The 16-bit resolution provides a high dynamic range, ensuring low noise and high linearity for the output signal, critical for high-end applications.
• JESD204B Interface: Equipped with the JESD204B high-speed serial interface, the AD9144BCPZ ensures efficient data transfer rates and simplifies the PCB layout by reducing the number of data input lines required.
• Integrated Features: The DAC includes on-chip features such as a PLL (phase-locked loop), digital up-conversion, and fine delay adjustment, which help to reduce external component count and system complexity.
• Compact Packaging: Housed in a compact 88-lead LFCSP (lead-frame chip-scale package), the AD9144BCPZ is designed for space-constrained applications.

Applications:

• Wireless communications infrastructure (e.g., base stations for 4G LTE and 5G)
• High-speed data acquisition systems
• Direct digital synthesis (DDS) for test and measurement equipment
• Phased array radar systems
• Electronic warfare and defense electronics

The AD9144BCPZ is a testament to Analog Devices Inc.'s commitment to providing cutting-edge technology for sophisticated electronic systems. Its combination of high-speed operation, multi-channel output, and advanced interface options make it a versatile and powerful component for any high-performance digital-to-analog conversion needs.
