AD9161BBCZ: High-Performance RF DAC by Analog Devices Inc.

The AD9161BBCZ is a state-of-the-art radio frequency Digital-to-Analog Converter (RF DAC) developed by Analog Devices Inc., a leader in high-performance analog technology. This product is designed to deliver exceptional performance for a wide range of applications, including wireless infrastructure, microwave point-to-point systems, test and measurement equipment, and defense electronics.

Key Features:

• High Dynamic Range: The AD9161BBCZ offers a superior dynamic range that ensures clear signal generation with low noise levels, making it ideal for high-performance systems.
• Wide Bandwidth: With support for a wide frequency range, this RF DAC can generate continuous waveforms up to 6 GHz, providing flexibility for various communication standards and protocols.
• Programmable: Users can easily program the AD9161BBCZ through a serial peripheral interface (SPI), allowing for customization and fine-tuning of performance parameters to meet specific application requirements.
• Integration: The device integrates a 16-bit DAC core and a configurable 2x-8x interpolator, enabling it to support data rates up to 12 GSPS, which simplifies system design and reduces component count.

Performance Specifications:

• Resolution: 16-bit
• Maximum Sample Rate: 12 GSPS
• Analog Output Frequency: Up to 6 GHz
• Interface: Serial Peripheral Interface (SPI)

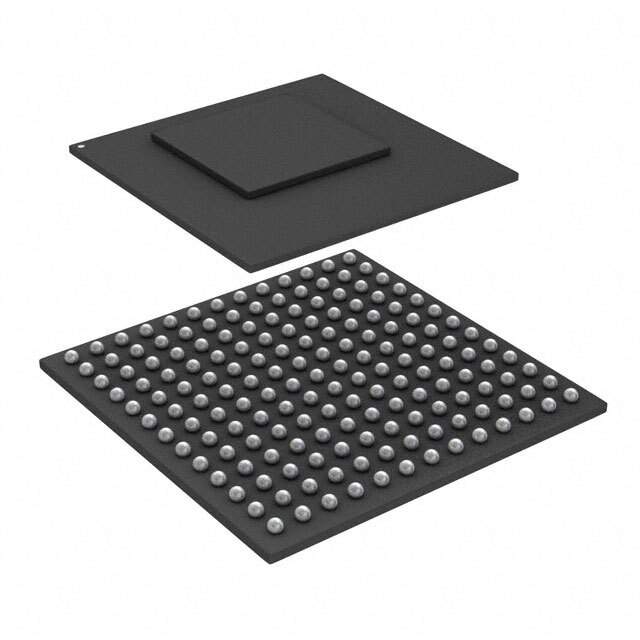

The AD9161BBCZ is housed in a compact 165-ball chip scale ball grid array (CSP_BGA) package, which minimizes board space and is well-suited for space-constrained applications. Its advanced design and robust feature set make it an excellent choice for designers looking to achieve high-performance signal synthesis with minimal design effort.

Whether used in direct RF synthesis applications or as a part of a more complex modulation scheme, the AD9161BBCZ delivers the quality and reliability expected from Analog Devices Inc. This product is not only a testament to the company's commitment to innovation but also an essential tool for engineers seeking to push the boundaries of wireless communication and signal processing.
