Product Overview: AD9460BSVZ-105 by Analog Devices Inc.

The AD9460BSVZ-105 is a high-performance, 16-bit analog-to-digital converter (ADC) designed by Analog Devices Inc., a leader in precision signal processing technology. This ADC is specifically engineered to meet the demanding requirements of advanced digital signal processing (DSP) applications such as radar, medical imaging, and wireless communication systems.

With a sampling rate of 105 MSPS (mega-samples per second), the AD9460BSVZ-105 provides precise and rapid data conversion, enabling the capture of high-frequency signals with exceptional accuracy. This makes it an ideal choice for applications that require high data throughput and real-time signal processing capabilities.

The device operates within a single 3.3V power supply, which helps in reducing the complexity of power management in system designs. Additionally, it features a differential input with a 2 Vpp to 3.2 Vpp adjustable input range, which allows designers to optimize the ADC for various signal sources and amplitudes, ensuring maximum dynamic range and signal integrity.

The AD9460BSVZ-105 boasts an excellent signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR), which are critical parameters for high-fidelity signal acquisition. Its robust design also includes features like an on-chip voltage reference and a duty cycle stabilizer, further enhancing its performance stability and reliability in diverse operating conditions.

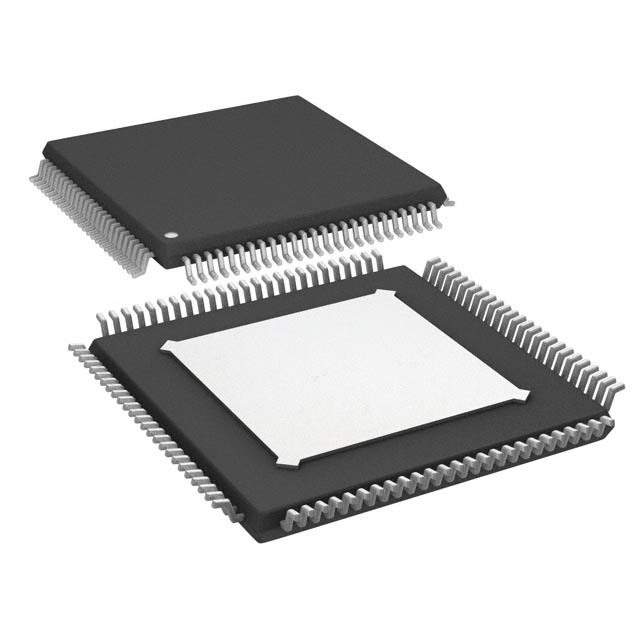

Its package, the 80-lead LQFP (low profile quad flat package), provides a compact footprint suitable for space-constrained applications while ensuring adequate thermal performance for the device. The AD9460BSVZ-105 is also specified over the industrial temperature range, making it versatile for deployment in a wide range of environmental conditions.

For engineers and system designers looking for a high-speed, precise ADC solution, the AD9460BSVZ-105 from Analog Devices Inc. offers a blend of performance, reliability, and flexibility that can enhance the capabilities of a multitude of high-performance electronic systems.

For more detailed specifications and application guidance, it is recommended to consult the datasheet and technical resources provided by Analog Devices Inc.
