ADA4857-1YCPZ-R2

Part No ADA4857-1YCPZ-R2
Manufacturer Analog Devices Inc.
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP VFB 1 CIRCUIT 8LFCSP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203135-ADA4857-1YCPZ-R2
Manufacturer Analog Devices Inc.
Category Integrated Circuits (ICs) -Linear -Amplifiers Instrumentation, OP Amps, Buffer Amps
Package Tape & Reel (TR) Cut Tape (CT)
Amplifier Type Voltage Feedback
Slew Rate 2800V/µs
Mounting Type Surface Mount

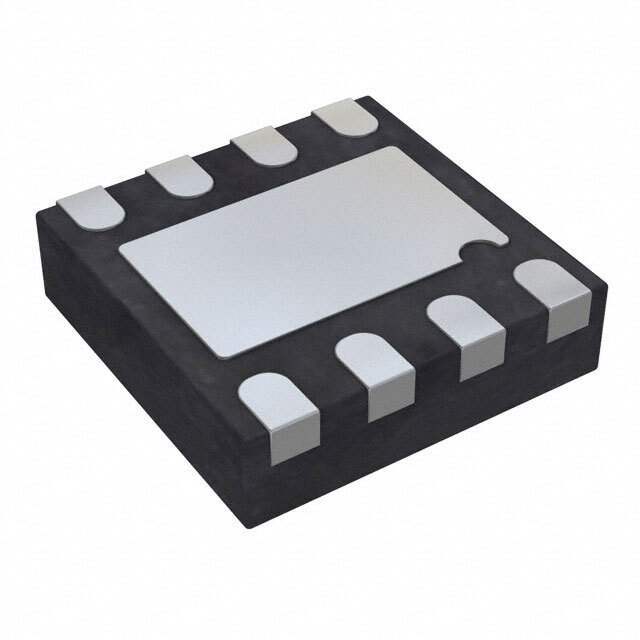

Package / Case 8-VFDFN Exposed Pad, CSP
Supplier Device Package 8-LFCSP-VD (3x3)
Base Product Number ADA4857
Current - Supply 5mA
Ultra Librarian 3D Model Ultra Librarian ADA4857-1YCPZ-R2 CAD Model

Description

ADA4857-1YCPZ-R2 High-Speed Operational Amplifier

The ADA4857-1YCPZ-R2 is a high-performance, low-power, voltage feedback operational amplifier from Analog Devices Inc. Designed to meet the demanding requirements of high-speed signal processing applications, this op-amp offers a perfect blend of speed, precision, and power efficiency.

With its high bandwidth of 410 MHz and slew rate of 1300 V/µs, the ADA4857-1YCPZ-R2 is capable of handling rapid signal changes, making it an ideal choice for applications such as video processing, A/D driver amplifiers, and high-speed filters. Its low distortion and noise characteristics ensure clean and accurate signal amplification, which is critical in high-fidelity audio systems and instrumentation.

The operational amplifier operates within a wide supply voltage range of 3 V to 10 V, providing designers with flexibility in various circuit configurations. Additionally, it features a low input bias current, low offset voltage, and low power consumption, which are essential attributes for battery-powered devices and portable applications.

The ADA4857-1YCPZ-R2 comes in a compact LFCSP (Lead Frame Chip Scale Package) that is conducive for space-constrained applications while also providing excellent thermal performance. The R2 version indicates that the product is provided in tape and reel packaging, which facilitates automated assembly processes for high-volume production.

Key features of the ADA4857-1YCPZ-R2 include:

  • High bandwidth: 410 MHz
  • Fast slew rate: 1300 V/µs
  • Low harmonic distortion
  • Low noise performance
  • Wide supply voltage range: 3 V to 10 V
  • Low power consumption
  • Compact LFCSP packaging

Overall, the ADA4857-1YCPZ-R2 by Analog Devices Inc. is an excellent choice for designers looking for a high-speed op-amp that does not compromise on power efficiency or performance. Whether it's for professional-grade audio equipment, medical imaging devices, or communication systems, this operational amplifier is engineered to deliver superior results.
