Analog Devices Inc. ADG1209YCPZ-REEL High-Performance Analog Multiplexer

The ADG1209YCPZ-REEL from Analog Devices Inc. is a robust and high-performance analog multiplexer that is part of their extensive range of switch and multiplexer devices. This particular model is engineered to deliver exceptional signal integrity and reliability for a broad spectrum of applications, including data acquisition systems, communication systems, and medical equipment.

Key Features:

• Channel Configuration: The ADG1209YCPZ-REEL features a 4:1 single-channel multiplexer configuration, providing users with the flexibility to route multiple signal sources through a single channel.
• Low On-Resistance: The device boasts an ultra-low on-resistance (RON) that typically stands at 4.5 ohms, ensuring minimal signal attenuation and distortion for precise and accurate signal routing.
• Single Supply Operation: Designed for simplicity and ease of use, the ADG1209YCPZ-REEL operates on a single 5 V to 16 V power supply or a dual ±5 V to ±8 V power supply, offering versatility in different circuit configurations.
• High ESD Protection: It comes with enhanced Electrostatic Discharge (ESD) protection, safeguarding the device against static damage and ensuring long-term reliability in harsh environments.
• Low Power Consumption: With a focus on energy efficiency, this multiplexer exhibits low power consumption, making it suitable for battery-powered and portable applications.

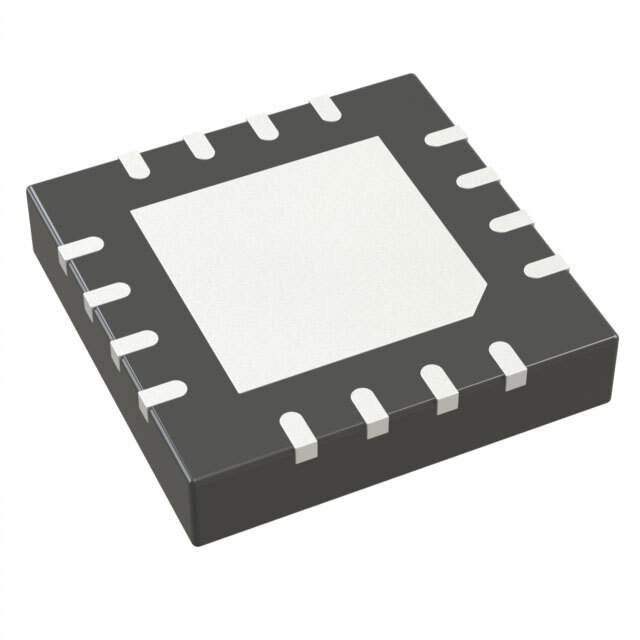

• Surface Mount Package: The component is available in a compact 16-lead LFCSP (Lead Frame Chip Scale Package), which is ideal for space-constrained applications while providing excellent thermal performance.

Applications:

• Data Acquisition Systems
• Communication Systems
• Medical Equipment
• Audio and Video Switching
• Automatic Test Equipment

The ADG1209YCPZ-REEL is delivered in a tape and reel format, which facilitates automated assembly processes and is suitable for high-volume production environments. Analog Devices Inc. ensures that this device meets stringent quality and performance standards, making it a reliable choice for designers and engineers looking to integrate a high-quality analog multiplexer into their systems.

With its combination of low on-resistance, high ESD protection, and low power consumption, the ADG1209YCPZ-REEL stands out as an excellent choice for applications requiring efficient and precise signal management.
