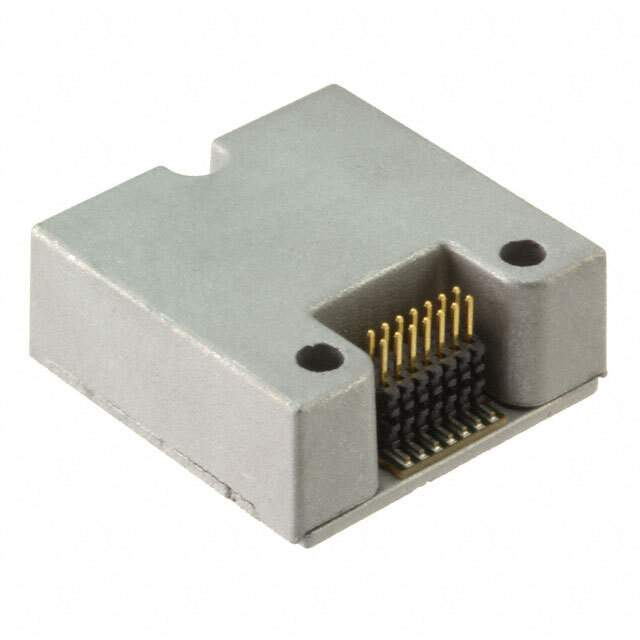

ADIS16460AMLZ - High-Performance, Precision MEMS IMU

The ADIS16460AMLZ is a high-precision, MEMS Inertial Measurement Unit (IMU) from Analog Devices Inc., designed to provide robust and accurate motion sensing in a variety of applications. This compact, inertial sensor system integrates a tri-axis gyroscope and a tri-axis accelerometer, delivering precise measurements for both angular rate and linear acceleration.

Key Features

• Tri-Axis Gyroscope: Offers excellent angular rate sensing with a wide dynamic range and stability over temperature.
• Tri-Axis Accelerometer: Provides high-precision linear acceleration data, essential for accurate motion tracking and navigation.
• Factory Calibration: Units are fully calibrated for sensitivity, bias, alignment, and linear acceleration, which ensures reliable and consistent performance.
• Dynamic Compensation: Temperature compensation and dynamic compensation options are available for improved performance in changing environments.
• Convenient Interface: The IMU features a SPI-compatible serial interface for easy integration with a wide range of systems.
• Compact and Rugged: Housed in a compact module with a robust design, making it suitable for challenging conditions.

Applications

The ADIS16460AMLZ is ideal for applications where precision motion sensing is critical. It is commonly used in:

• Industrial Instrumentation
• Platform Stabilization
• Navigation Systems
• Robotics
• Unmanned Vehicles

Technical Specifications

The IMU operates within a temperature range of -40°C to +85°C and provides a gyro dynamic range of ±450°/sec and an accelerometer range of ±18g. Its low noise performance and high stability make the ADIS16460AMLZ a reliable choice for precision motion analysis and control.

Conclusion

With its advanced sensor technology and high level of integration, the ADIS16460AMLZ from Analog Devices Inc. is a powerful solution for engineers requiring a compact, high-performance IMU. Its robust design and ease of use make it an excellent choice for a wide range of motion-sensitive applications.
