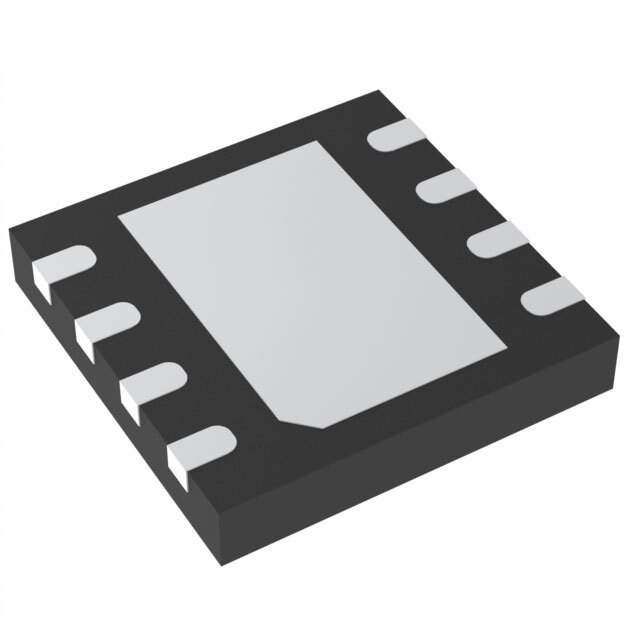

Analog Devices ADM7150ACPZ-1.8-R7 Low Dropout Linear Regulator

The ADM7150ACPZ-1.8-R7 is a high-performance, low dropout (LDO) linear regulator from Analog Devices Inc., designed to deliver a stable and precise 1.8V output voltage. This device comes in a compact 8-lead LFCSP (Lead Frame Chip Scale Package) that is ideal for space-constrained applications.

With an input voltage range of 4.5V to 16V, the ADM7150ACPZ-1.8-R7 is versatile and can be used in a variety of systems, including those requiring a reliable power source for sensitive analog and RF circuits. The regulator is capable of sourcing up to 800mA of output current, making it suitable for powering a wide range of devices.

One of the key features of this LDO is its ultra-low noise performance, which is crucial for maintaining signal integrity in precision applications. The ADM7150ACPZ-1.8-R7 boasts a low 1.0μV RMS noise (10 Hz to 100 kHz) and excellent power supply rejection ratio (PSRR) characteristics, ensuring minimal interference from fluctuations in the input voltage.

The device also includes several protection features to safeguard your circuitry. It has built-in thermal shutdown and current limit functions, which prevent damage from overheating and overcurrent conditions. Additionally, the ADM7150ACPZ-1.8-R7 has a fast transient response, which helps maintain output stability during rapid changes in load.

For ease of use, this LDO regulator requires only two external capacitors for proper operation—a ceramic input bypass capacitor and a ceramic output capacitor. This minimal external component requirement simplifies the design process and reduces the overall solution footprint.

The ADM7150ACPZ-1.8-R7 is part of Analog Devices' commitment to providing high-quality power management solutions. It is an excellent choice for designers seeking a reliable, low noise power solution for precision analog, high-speed data acquisition, RF, and FPGA-based systems.

To ensure compatibility and reliability, the ADM7150ACPZ-1.8-R7 is RoHS compliant and supported by Analog Devices' comprehensive technical documentation and design resources. This product is a testament to Analog Devices' expertise in creating components that meet the stringent requirements of modern electronic systems.
