ADM8832ACPZ-REEL by Analog Devices Inc.

The ADM8832ACPZ-REEL is a high-performance, integrated charge pump LED driver designed to provide a simple and efficient solution for driving LEDs in portable devices. Manufactured by Analog Devices Inc., a leader in high-performance semiconductors, this driver is part of their commitment to delivering innovative and energy-efficient components for today's electronic market.

Key Features

• Charge Pump Technology: Utilizes a 1x/1.5x/2x charge pump to efficiently drive LEDs, ensuring optimal performance across a range of input voltages.
• High Efficiency: The device is designed to deliver high efficiency, which is critical for battery-powered applications, thereby extending battery life.
• Adjustable Output: Provides a programmable current output to drive up to six LEDs, allowing for flexibility in various lighting applications.

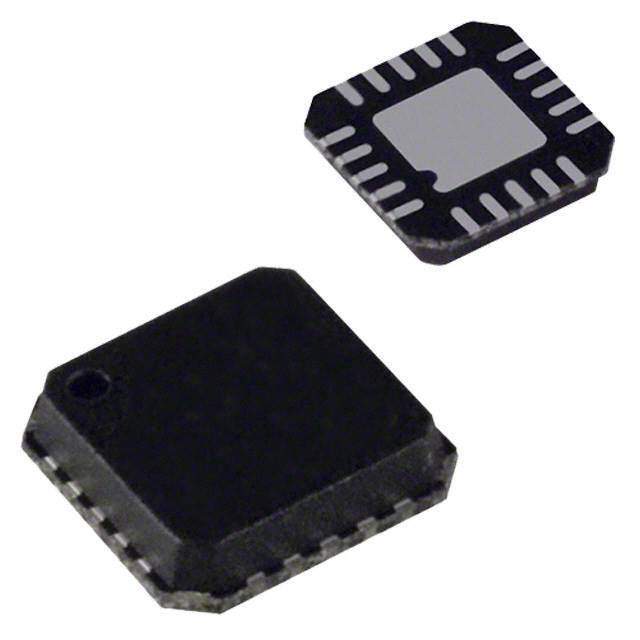

• Small Footprint: Available in a compact 3x3 mm 16-lead LFCSP (Lead Frame Chip Scale Package), ideal for space-constrained applications.
• Thermal Protection: Features built-in thermal shutdown protection that safeguards the device and the LEDs from overheating.

Applications

The ADM8832ACPZ-REEL is particularly suitable for a wide range of applications where efficient LED driving is required. These include:

• Mobile phones and smartphones
• Digital cameras
• Personal media players
• Handheld gaming devices
• Portable medical equipment
• Other battery-powered devices where LED backlighting is used

Product Details

This LED driver comes in a convenient reel packaging, which is ideal for automated assembly processes, and is part of the ADM8832 series known for its reliability and performance. The ADM8832ACPZ-REEL operates over a wide temperature range, making it suitable for various environmental conditions. It supports a broad input voltage range and offers a straightforward interface that simplifies integration into existing designs.

In summary, the ADM8832ACPZ-REEL by Analog Devices Inc. is a versatile, high-efficiency LED driver that combines performance with compact design, making it an excellent choice for designers looking to enhance their portable device lighting solutions.
